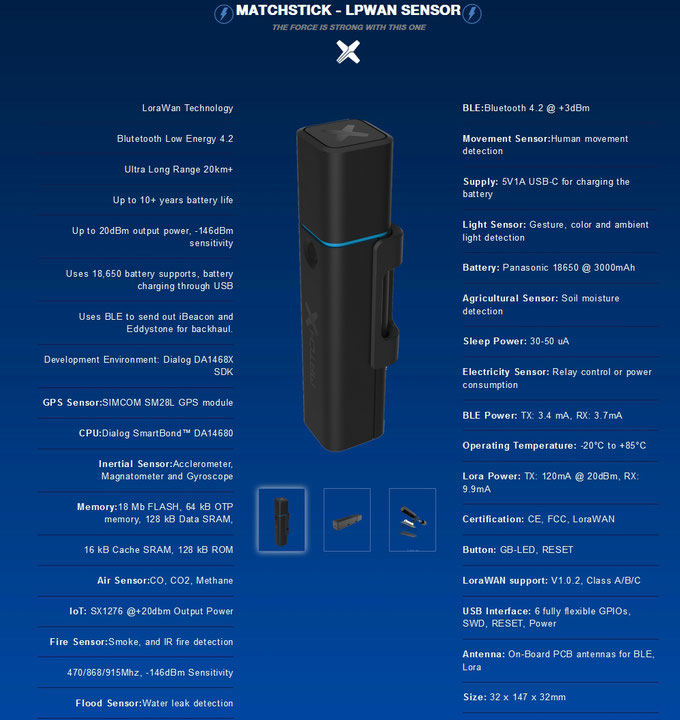

Matchstick - LPWAN Sensor - Die eierlegende Wollmilchsau?

Gerhard Peter

Initiator of "TTN Community Berlin"

Posted on 13-10-2017

https://matchx.io/hardware#matchsticks

Hinweis:
TTN Kompatibilitaet sei gegeben, sagt mir der COO, hier in der Hauptstadt.

Datasheet suche ich noch.

Wir bitten um dennoch Erfahrungsberichte, falls jemand bereits damit arbeitet. Der Teufel steckt immer im Detail...Danke.

https://www.cnx-software.com/2017/04/14/matchx-lorawan-solution-supports-up-to-65535-sensors-per-gateway/


MCU – Dialog SmartBond DA14680 ARM Cortex M0 micro-controller with 18 Mbit flash, 64 kB OTP memory, 128 kB Data SRAM, 128 kB ROM, and BLE 4.2 support
Connectivity
    LoRa – Semtech SX1276 @+20dbm output power; 470/868/915Mhz; -146dBm Sensitivity; LoraWAN V1.0.2, Class A/B/C; on-board antenna
    Bluetooth 4.2 LE @ +3dBm with on-board antenna
    SIMCOM SM28L GPS module (MatchStick only)
Sensors
    Inertial Sensor – Accelerometer, Magnetometer and Gyroscope
    MatchStick only, selection of:
        Air Sensor – CO, CO2, Methane
        Fire Sensor – Smoke, and IR fire detection
        Flood Sensor – Water leak detection
        Movement Sensor – Human movement detection
        Light Sensor – Gesture, color and ambient light detection
        Agricultural Sensor – Soil moisture detection
        Electricity Sensor – Relay control or power consumption
USB – 1x USB interface with 6 flexible GPIOs, SWD, Reset and power
Misc – RGB LED, reset & user buttons
Power Supply – 5V/1A via USB-C connector for charging the battery
Battery
    MatchStick – Panasonic 18650 @ 3000mAh good for up to 10 years on a charge
    MatchBox – CR2032 battery (300 mAh) good for up to 3 years on a charge
Power Consumption
    Sleep Power – 30-50 uA
    BLE Power – TX: 3.4 mA, RX: 3.7mA
    LoRa Power – TX: 120mA @ 20dBm, RX: 9.9mA
Dimensions
    MatchStick – 147 x 32 x 32 mm
    MatchCore – 52 x 34 x 18 mm
Temperature Range – -20°C to 85°C
Certification: CE, FCC, LoraWAN
