Industrial Tracker

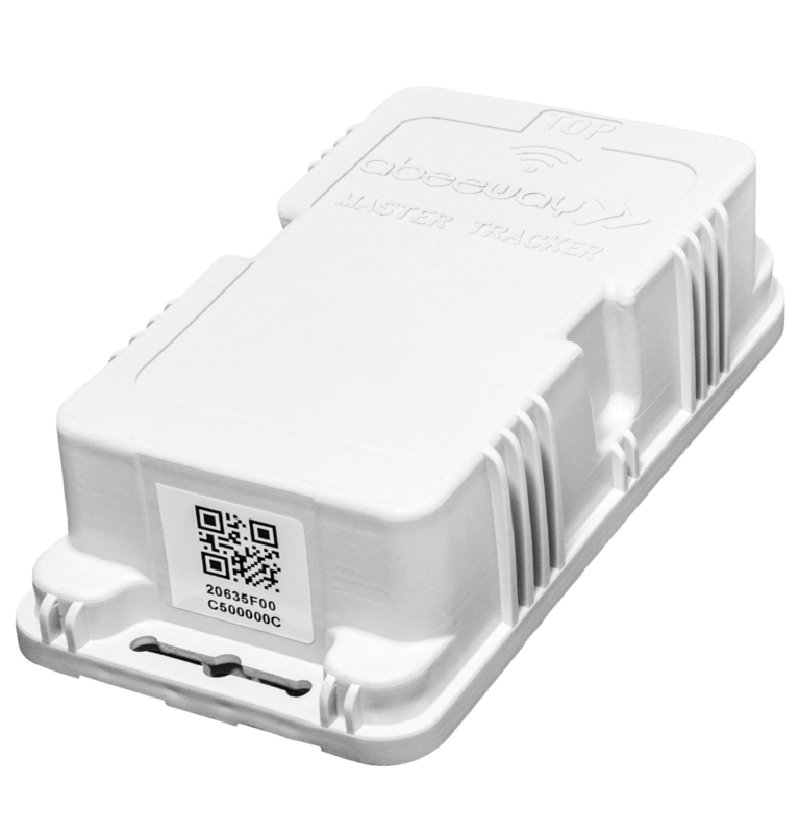

The Abeeway Industrial Tracker has embedded sensors combining GPS, Low-power GPS, Wi-Fi Sniffer, and LoRaWAN® TDoA geolocation technologies, supporting accurate outdoor and indoor geolocation. In addition to that, it has embedded sensors for measuring temperature, motion, and pressure. This tracker is an ideal solution for industry tracking and asset management needs.
About this device
The Abeeway Industrial Tracker has embedded sensors combining GPS, Low-power GPS, Wi-Fi Sniffer, and LoRaWAN® TDoA geolocation technologies, supporting accurate outdoor and indoor geolocation. In addition to that, it has embedded sensors for measuring temperature, motion, and pressure. This tracker is an ideal solution for industry tracking and asset management needs.
The Industrial Tracker supports 3 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: accelerometer, gps, temperature.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 3 frequency plans supported: AS923, EU863-870, US902-928.
- Battery powered (Lithium-thionyl Chloride Type D).
Vendor
At a glance
Hardware specifications
| Model ID | abeeway-industrial-tracker |
| Dimensions | 145 × 76 × 42 mm |
| Weight | 240 g |
| IP rating | IP65 |
| Operating temperature | -15 °C to 65 °C |
| Relative humidity | 0.5% to 0.95% |
| Power | Battery — Lithium-thionyl Chloride Type D |
| Additional radios | wifi, ble |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 2.1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 18 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 18 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Industrial Tracker”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
