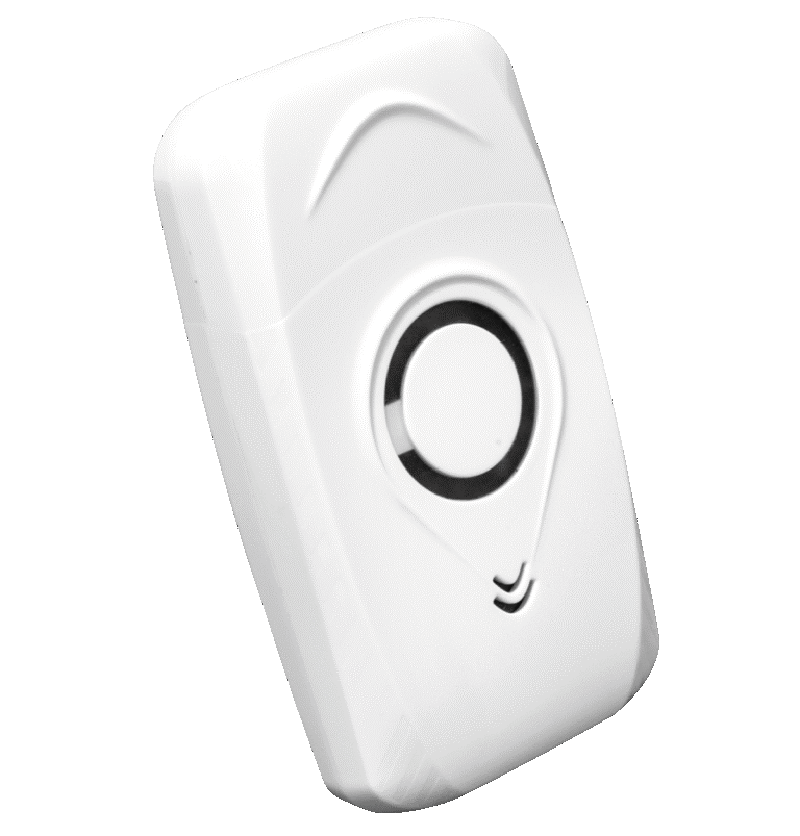

Micro Tracker
The Abeeway Micro Tracker is a multi-mode tracker for indoor and outdoor use. It provides accurate indoor and outdoor positioning using embedded geolocation sensors combining GPS, Low-power GPS, Wi-Fi Sniffing, BLE, and LoRaWAN® TDoA geolocation technologies. Ideal for tracking anything including people, pets, vehicles, and assets with antitheft and geofencing technologies.
About this device
The Abeeway Micro Tracker is a multi-mode tracker for indoor and outdoor use. It provides accurate indoor and outdoor positioning using embedded geolocation sensors combining GPS, Low-power GPS, Wi-Fi Sniffing, BLE, and LoRaWAN® TDoA geolocation technologies. Ideal for tracking anything including people, pets, vehicles, and assets with antitheft and geofencing technologies.
The Micro Tracker supports 3 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: accelerometer, gps, temperature.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 3 frequency plans supported: AS923, EU863-870, US902-928.
- Battery powered (Lithium Polymer).
Vendor
At a glance
Hardware specifications
| Model ID | abeeway-micro-tracker |
| Dimensions | 59 × 34 × 13 mm |
| Weight | 21 g |
| Operating temperature | -10 °C to 55 °C |
| Relative humidity | 0.5% to 0.95% |
| Power | Battery — Lithium Polymer |
| Additional radios | wifi, ble |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 2.1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Micro Tracker”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
