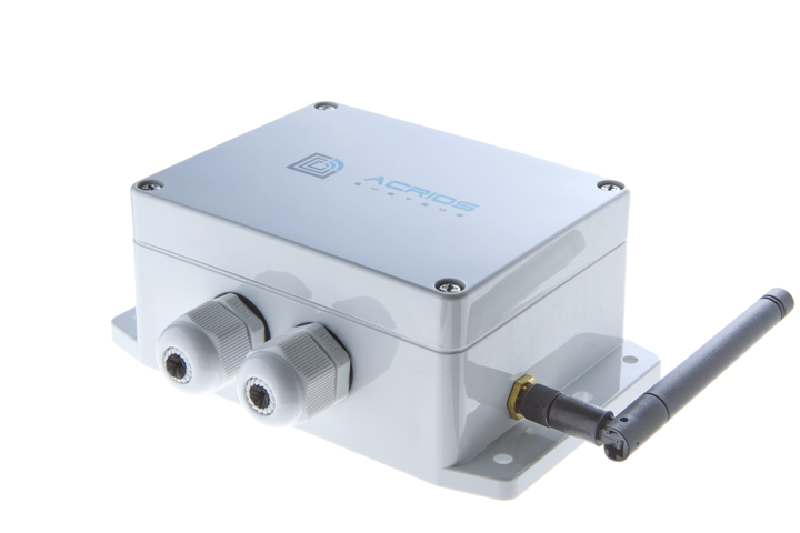

RS-485 to LoRaWAN converter, externally powered
RS-485 to LoRaWAN converter is used to retrofit ANY RS-485 meter with LoRaWAN communication
About this device
RS-485 to LoRaWAN converter is used to retrofit ANY RS-485 meter with LoRaWAN communication
The RS-485 to LoRaWAN converter, externally powered supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 1 frequency plan supported: EU863-870.
- Battery powered (Externally powered unit 85 - 305V AC).
Vendor
At a glance
Hardware specifications
| Model ID | acr-cv-101l-r-eac |
| Dimensions | 90 × 145 × 55 mm |
| Weight | 166 g |
| IP rating | IP67 |
| Operating temperature | -30 °C to 60 °C |
| Relative humidity | 0% to 0.85% |
| Power | Battery — Externally powered unit 85 - 305V AC |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
| Safety | 13757-3 — M-Bus |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 2.5
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.4 | RP002-1.0.0 | A | OTAA | 16 dBm | ✓ Yes |
Firmware 2.13.18
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.4 | RP002-1.0.0 | A | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “RS-485 to LoRaWAN converter, externally powered”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
