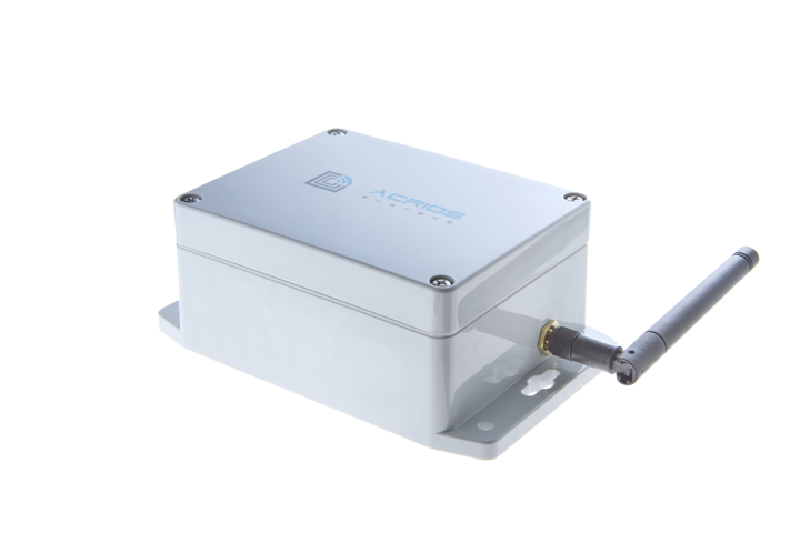

Wireless M-Bus to LoRaWAN converter
Wireless M-Bus to LoRaWAN converter is used to retrofit ANY Wireless M-Bus meter with LoRaWAN communication
About this device
Wireless M-Bus to LoRaWAN converter is used to retrofit ANY Wireless M-Bus meter with LoRaWAN communication
The Wireless M-Bus to LoRaWAN converter supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 1 frequency plan supported: EU863-870.
- Battery powered (Double D-Cell with JST-XH 2pin connector), user replaceable.
Vendor
At a glance
Hardware specifications
| Model ID | acr-cv-101ni-w-d2 |
| Dimensions | 90 × 145 × 55 mm |
| Weight | 475 g |
| IP rating | IP67 |
| Operating temperature | -30 °C to 60 °C |
| Relative humidity | 0% to 0.85% |
| Power | Battery — Double D-Cell with JST-XH 2pin connector, replaceable |
| Additional radios | cellular |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 2.13.18
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.4 | RP002-1.0.0 | A | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Wireless M-Bus to LoRaWAN converter”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
