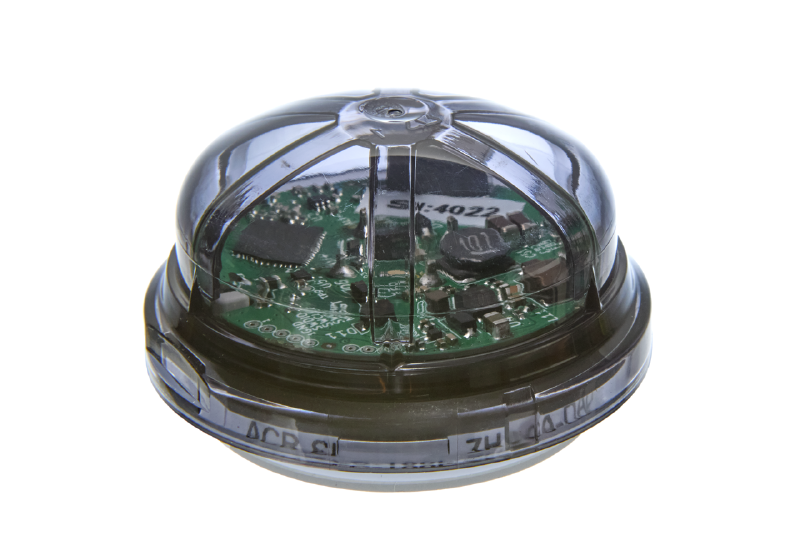

LoRaWAN street light module (ZHAGA DALI)
Smart street lighting module with ZHAGA socket based on the STM32WL with the 40mm enclosure in diameter is DALI and DALI-2 compatible. We can provide you with just a hardware or both with the complex solution or just a backend with API access.
About this device
Smart street lighting module with ZHAGA socket based on the STM32WL with the 40mm enclosure in diameter is DALI and DALI-2 compatible. We can provide you with just a hardware or both with the complex solution or just a backend with API access.
The LoRaWAN street light module (ZHAGA DALI) supports 1 regional frequency plan and operates as a Class A/C LoRaWAN device.
Key features
- Sensors: light, temperature.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 1 frequency plan supported: EU863-870.
- Battery powered.
Vendor
At a glance
Hardware specifications
| Model ID | acr-slc-100l-zhaga-dali |
| Dimensions | 40 × 40 × 40 mm |
| Weight | 120 g |
| IP rating | IP67 |
| Operating temperature | -30 °C to 60 °C |
| Power | Battery |
Sensors & capabilities
Certifications & compliance
| Safety | 62368-1 — IEC |
| Radio equipment | 301 489-1 (2.2.0) — ETSI |
| Radio equipment | 301 489-3 (2.1.0) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.2
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “LoRaWAN street light module (ZHAGA DALI)”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
