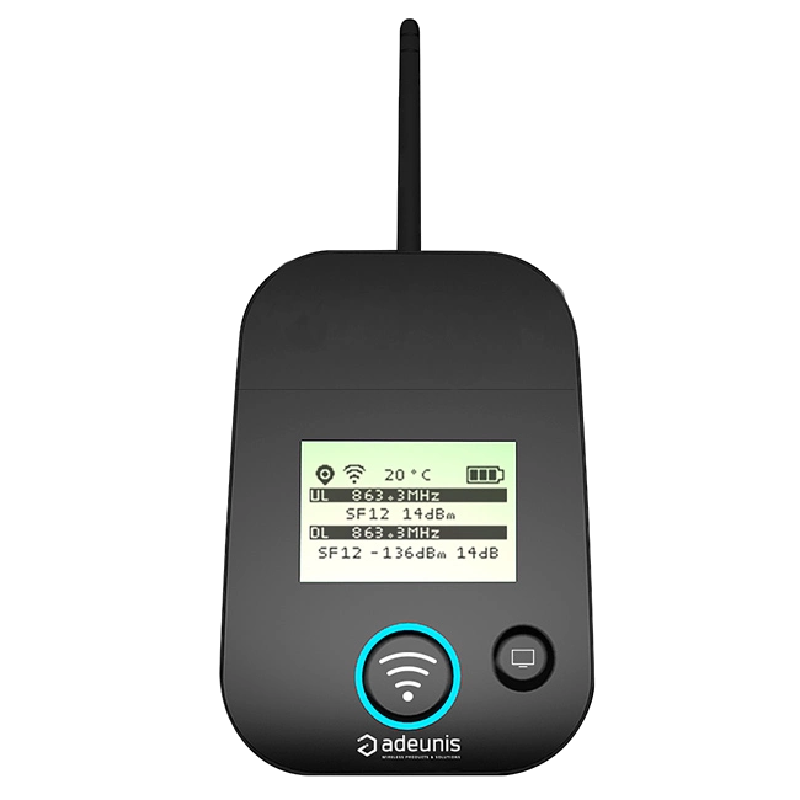

FTD Network Tester
The Adeunis FTD (Field Test Device) is a LoRaWAN® network tester that consists of a GPS receiver and a temperature sensor. It checks network coverages and chooses the most appropriate network for ensuring the good positioning of end devices.
About this device
The Adeunis FTD (Field Test Device) is a LoRaWAN® network tester that consists of a GPS receiver and a temperature sensor. It checks network coverages and chooses the most appropriate network for ensuring the good positioning of end devices.
The FTD Network Tester supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- Sensors: temperature, gps.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 1 frequency plan supported: EU863-870.
- Battery powered (3.7v Lithium), user replaceable.
Vendor
At a glance
Hardware specifications
| Model ID | ftd-network-tester |
| Dimensions | 75.2 × 22.8 × 186.2 mm |
| Weight | 140 g |
| Operating temperature | -20 °C to 40 °C |
| Relative humidity | 0% to 1% |
| Power | Battery — 3.7v Lithium, replaceable |
Sensors & capabilities
Certifications & compliance
| Radio equipment | 300-220-1 (2.0.12) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “FTD Network Tester”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
