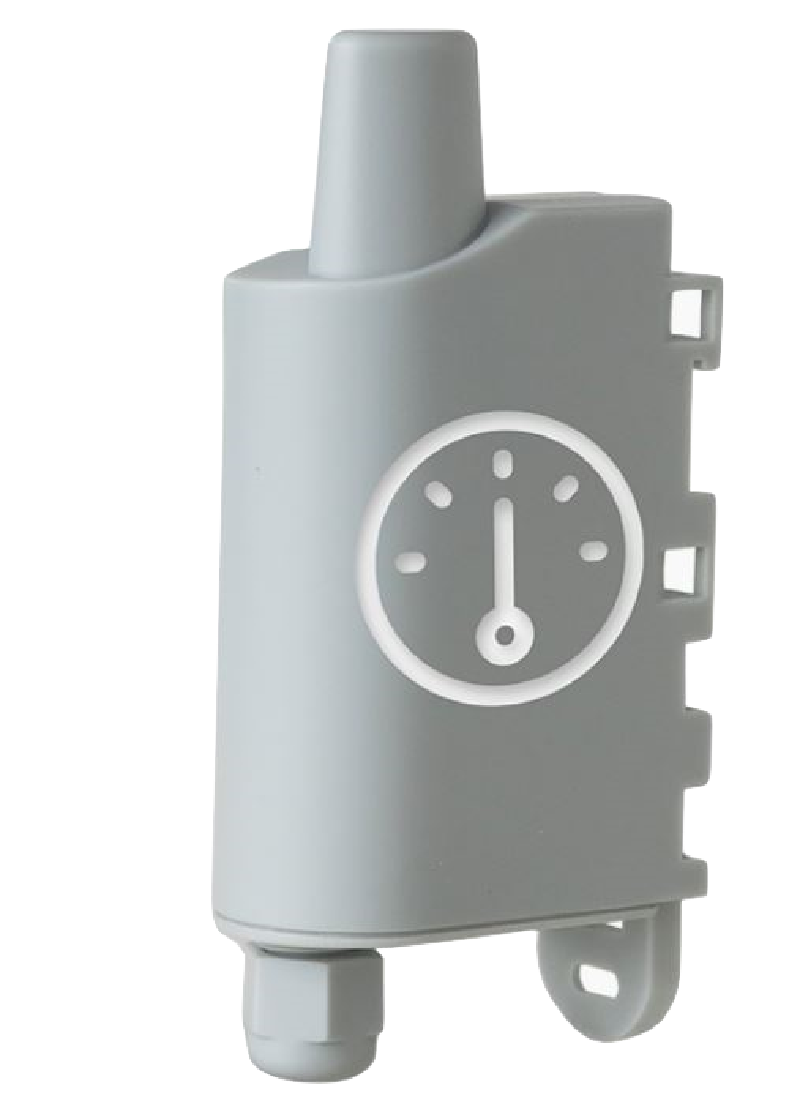

Pulse - Metering Interface
The Adeunis Pulse impulse interface allows connecting up to 2 connectable meters (water, gas, electricity, etc) and provides LoRaWAN® connectivity.
About this device
The Adeunis Pulse impulse interface allows connecting up to 2 connectable meters (water, gas, electricity, etc) and provides LoRaWAN® connectivity.
The Pulse - Metering Interface supports 3 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: pulse count.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 3 frequency plans supported: AS923, EU863-870, US902-928.
- Battery powered.
Vendor
At a glance
Hardware specifications
| Model ID | pulse |
| Dimensions | 105 × 50 × 27 mm |
| Weight | 70 g |
| IP rating | IP67 |
| Operating temperature | -25 °C to 70 °C |
| Relative humidity | 0% to 1% |
| Power | Battery |
Sensors & capabilities
Certifications & compliance
| Safety | 62368-1 — IEC |
| Radio equipment | 301 489-1 (2.2.0) — ETSI |
| Radio equipment | 301 489-3 (2.1.0) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| EU863-870 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 20 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Pulse - Metering Interface”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
