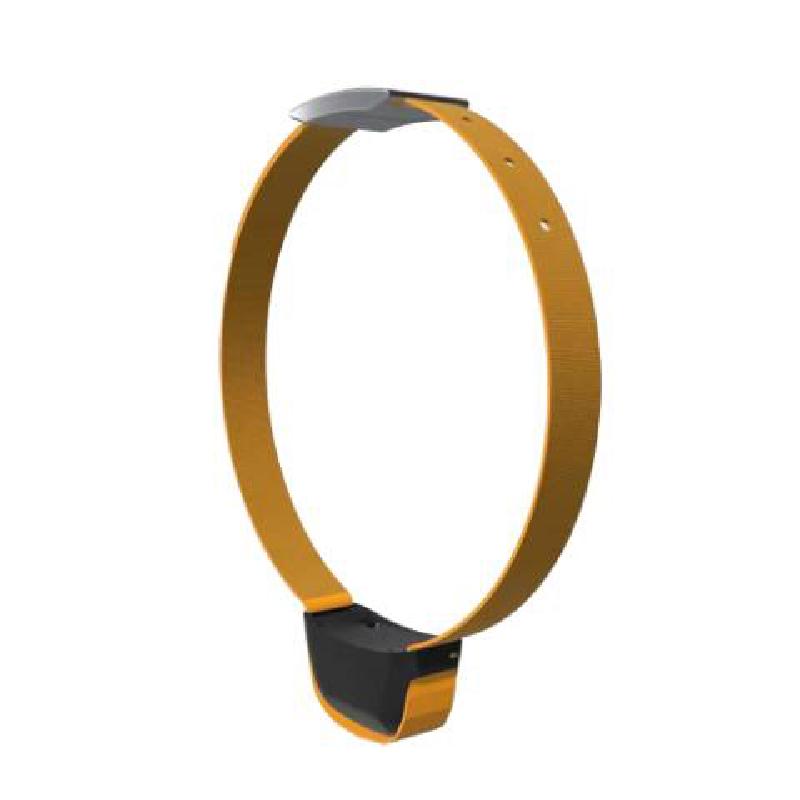

GA5067 - Cattle Tracking

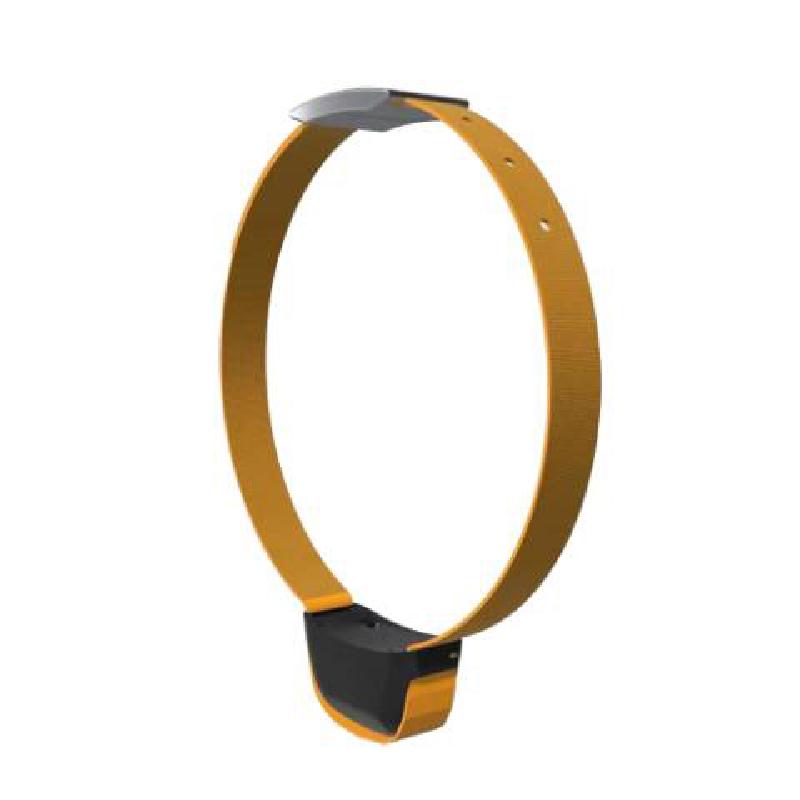

GA5067 is a LoRa-based (LTE cat1, LTEM optional) GPS tracking device for cattle tracking with Li-SOCl2 battery. The Collar’s GPS location data will be uplinked to the LoRaWAN gateway according to the schedule you choose, The collar is programmed wirelessly by the network server. You can control how often GPS location data are collected, and can also remotely command program changes to the fixed-rate and mortality schedule, fixed duration time, and GPS location data transmission interval.
About this device
GA5067 is a LoRa-based (LTE cat1, LTEM optional) GPS tracking device for cattle tracking with Li-SOCl2 battery. The Collar’s GPS location data will be uplinked to the LoRaWAN gateway according to the schedule you choose, The collar is programmed wirelessly by the network server. You can control how often GPS location data are collected, and can also remotely command program changes to the fixed-rate and mortality schedule, fixed duration time, and GPS location data transmission interval.
The GA5067 - Cattle Tracking supports 3 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: accelerometer, gps, temperature, humidity.
- 3 frequency plans supported: AS923, EU863-870, US902-928.
- Battery powered (19000mah Li SOCl2 battery), user replaceable.
Vendor
Hardware specifications
| Model ID | ga5067 |
| Dimensions | 110.5 × 48.2 × 54.5 mm |
| Weight | 290 g |
| IP rating | IP67 |
| Operating temperature | -40 °C to 75 °C |
| Relative humidity | 0.1% to 0.9% |
| Power | Battery — 19000mah Li SOCl2 battery, replaceable |
| Additional radios | ble |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 27 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 27 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “GA5067 - Cattle Tracking”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
