Lock

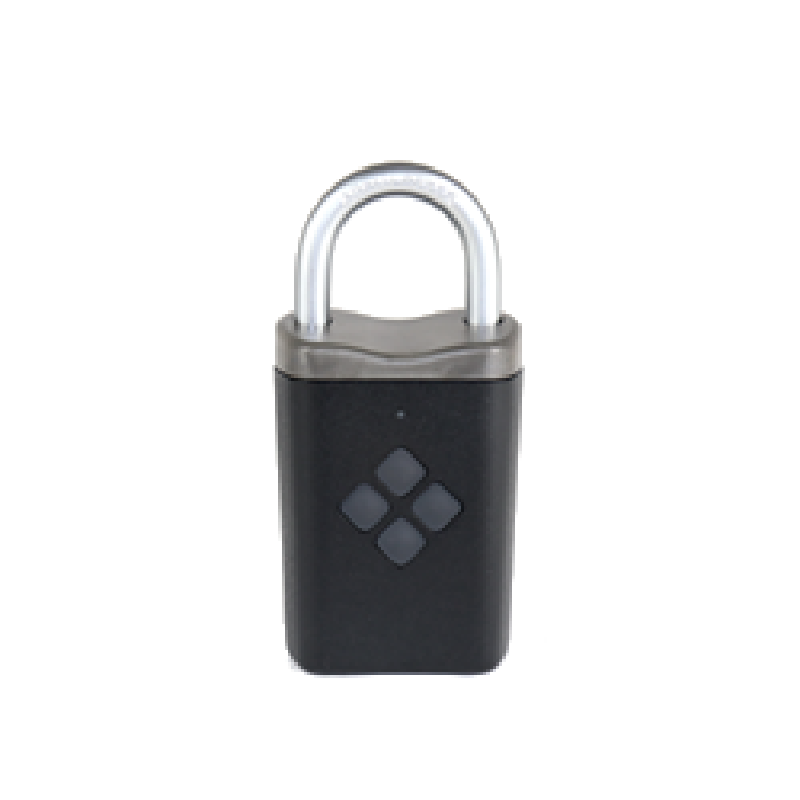

The lock ia a digital IoT-managed locking solution with a high level of the security requirements, 5 years of battery lifetime and remote assets control.
About this device
The lock ia a digital IoT-managed locking solution with a high level of the security requirements, 5 years of battery lifetime and remote assets control.
The Lock supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- Sensors: battery, button.
- 1 frequency plan supported: EU863-870.
Vendor
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.3.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Lock”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
