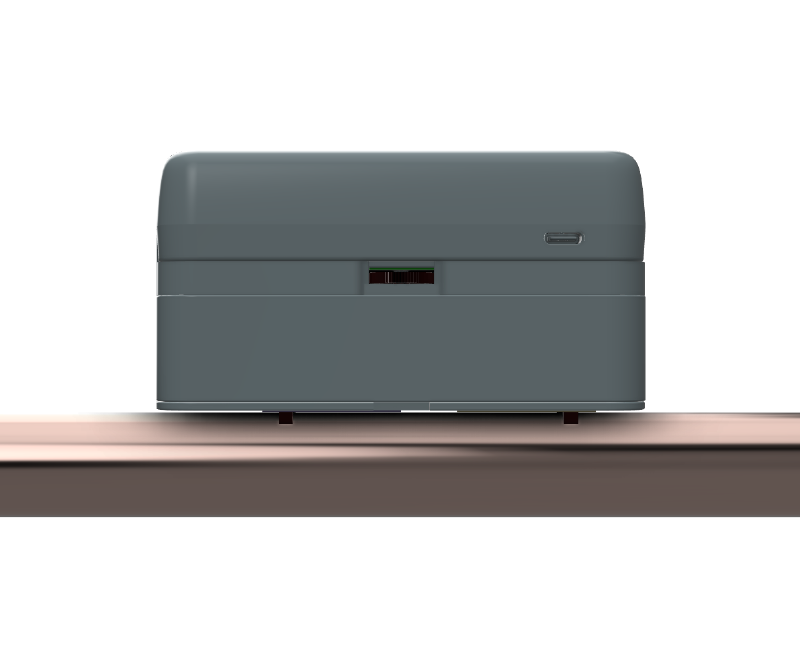

Ultrasonic Clamp-On Water Meter AQMLWE01
The water sensor clamp measures the flow and temperature in a water pipe using a "Time of Flight" measurement method and transmits the data wirelessly. Through an internal analysis of the flow, water leaks, and other anomalies are detected, and the owner is alerted. The device is clamped onto the outside of the water pipe without the need to interrupt the water supply. Its flexible design and innovative software allow it to be used on water pipes ranging from DN15 to DN40 (diameter 15…50 mm) with all available materials in the market, such as PEX, PEX AL, copper, PE, or steel. It meets all the requirements of the European Metering Directive (MID). With a footprint of only 60 mm above the water pipe and a length of 110 mm, the device is very slim and short, making it easy to install.
About this device
The water sensor clamp measures the flow and temperature in a water pipe using a "Time of Flight" measurement method and transmits the data wirelessly. Through an internal analysis of the flow, water leaks, and other anomalies are detected, and the owner is alerted. The device is clamped onto the outside of the water pipe without the need to interrupt the water supply. Its flexible design and innovative software allow it to be used on water pipes ranging from DN15 to DN40 (diameter 15…50 mm) with all available materials in the market, such as PEX, PEX AL, copper, PE, or steel. It meets all the requirements of the European Metering Directive (MID). With a footprint of only 60 mm above the water pipe and a length of 110 mm, the device is very slim and short, making it easy to install.
The Ultrasonic Clamp-On Water Meter AQMLWE01 supports 2 regional frequency plans and operates as a Class A/C LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: temperature, water.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- Payload codec included, uplink decoder ready for one-click activation.
- 2 frequency plans supported: EU863-870, US902-928.
Vendor
At a glance
Hardware specifications
| Model ID | aqm |
| Dimensions | 60 × 110 × 40 mm |
| Weight | 310 g |
| IP rating | IP67 |
| Operating temperature | -5 °C to 80 °C |
| Relative humidity | 0% to 0.97% |
Sensors & capabilities
Certifications & compliance
| Safety | 62368-1 — IEC |
| Radio equipment | 301 489-1 (2.2.0) — ETSI |
| Radio equipment | 301 489-3 (2.1.0) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 241115
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Ultrasonic Clamp-On Water Meter AQMLWE01”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
