Gate Valve Servo KFRLWE01

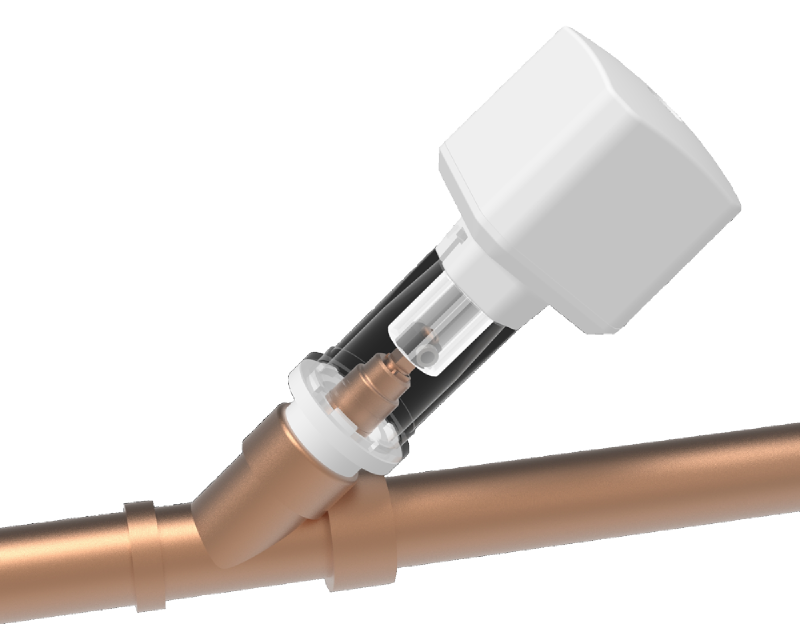

The motor drive for angled seat valves (KFR valves) or normal straight-seated shut-off valves allows for retrofitting existing and already installed shut-off valves into wirelessly controlled intelligent devices without interrupting the water supply or cutting into the water pipe. The motor is powered by a 12V power supply and is completely waterproof and dirt-resistant up to the power supply. An optional battery pack enables autonomous operation in places where no electricity is available. Various adapter rings and a sophisticated connection system enable the use of the motor on all modern valves from DN15 to DN32. With an additional water sensor that attaches directly to the device, the motor can be used for leak protection without further configuration. The servo motor is waterproof and can be used in humid, dirty, and outdoor environments.
About this device
The motor drive for angled seat valves (KFR valves) or normal straight-seated shut-off valves allows for retrofitting existing and already installed shut-off valves into wirelessly controlled intelligent devices without interrupting the water supply or cutting into the water pipe. The motor is powered by a 12V power supply and is completely waterproof and dirt-resistant up to the power supply. An optional battery pack enables autonomous operation in places where no electricity is available. Various adapter rings and a sophisticated connection system enable the use of the motor on all modern valves from DN15 to DN32. With an additional water sensor that attaches directly to the device, the motor can be used for leak protection without further configuration. The servo motor is waterproof and can be used in humid, dirty, and outdoor environments.
The Gate Valve Servo KFRLWE01 supports 2 regional frequency plans and operates as a Class A/C LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: temperature.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- Payload codec included, uplink decoder ready for one-click activation.
- 2 frequency plans supported: EU863-870, US902-928.
Vendor
At a glance
Hardware specifications
| Model ID | kfr |
| Dimensions | 170 × 70 × 195 mm |
| Weight | 420 g |
| IP rating | IP67 |
| Operating temperature | -20 °C to 60 °C |
| Relative humidity | 0% to 0.97% |
Sensors & capabilities
Certifications & compliance
| Safety | 62368-1 — IEC |
| Radio equipment | 301 489-1 (2.2.0) — ETSI |
| Radio equipment | 301 489-3 (2.1.0) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.36
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Gate Valve Servo KFRLWE01”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
