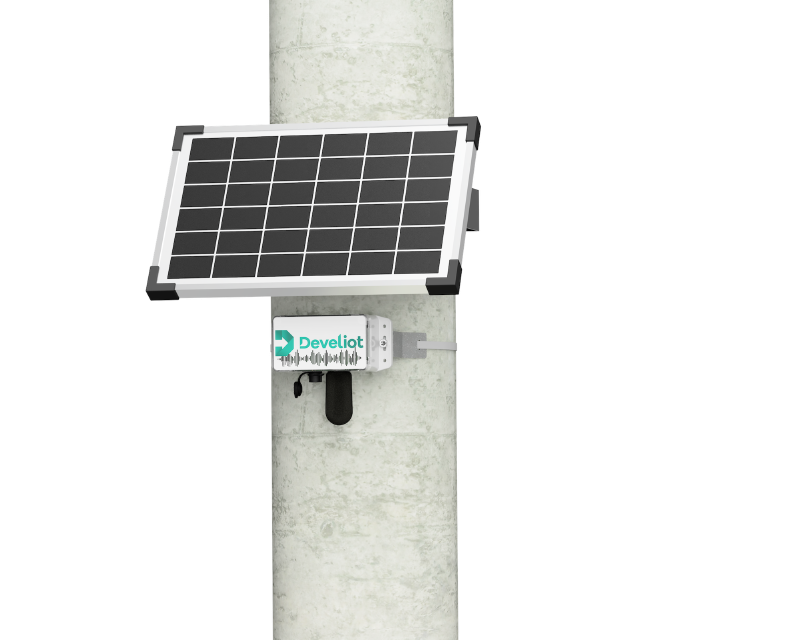

Urban Noise Monitoring Station
The Noise Level Monitoring Station is a hardware noise monitoring solution that helps cities and communities sense accurate noise level data. The Station operates autonomously without requiring external power source or manual data gathering.
About this device
The Noise Level Monitoring Station is a hardware noise monitoring solution that helps cities and communities sense accurate noise level data. The Station operates autonomously without requiring external power source or manual data gathering.
The Urban Noise Monitoring Station supports 9 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: sound, temperature, battery.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 9 frequency plans supported: AS923, AU915-928, CN470-510, CN779-787, EU863-870, IN865-867, KR920-923, RU864-870, US902-928.
- Battery powered (Lithium), user replaceable.
Vendor
At a glance
Hardware specifications
| Model ID | noise |
| Dimensions | 145 × 125 × 56 mm |
| Weight | 250 g |
| IP rating | IP54 |
| Operating temperature | -30 °C to 60 °C |
| Power | Battery — Lithium, replaceable |
Sensors & capabilities
Certifications & compliance
| Safety | 62368-1 — IEC |
| Radio equipment | 300 220 (3.1.1) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| CN470-510 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| CN779-787 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| RU864-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Also supported: CN779-787
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Urban Noise Monitoring Station”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
