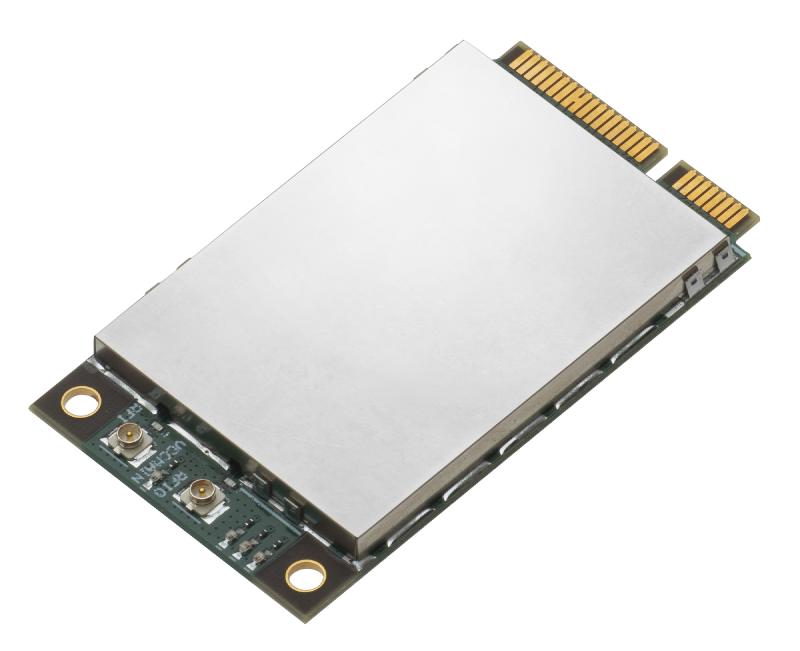

EMB-LR1302-mPCI
The embit EMB-LR1302-mPCI is a mini PCI express multichannel LoRa® card. It can operate on the 868 or 915 MHz radio band. It is suitable for applications that require long-range connectivity like logistic and supply chain, industrial monitoring and control, factory automation, home & building automation, and wireless alarm & security systems.
About this device
The embit EMB-LR1302-mPCI is a mini PCI express multichannel LoRa® card. It can operate on the 868 or 915 MHz radio band. It is suitable for applications that require long-range connectivity like logistic and supply chain, industrial monitoring and control, factory automation, home & building automation, and wireless alarm & security systems.
The EMB-LR1302-mPCI supports 2 regional frequency plans and operates as a Class A/B/C LoRaWAN device.
Key features
- 2 frequency plans supported: EU863-870, US902-928.
Vendor
At a glance
Hardware specifications
| Model ID | emb-lr1302-mpci |
| Dimensions | 30 × 50.95 × 1 mm |
| Operating temperature | -40 °C to 85 °C |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0.1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 30 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 30 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “EMB-LR1302-mPCI”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
