LDDS75

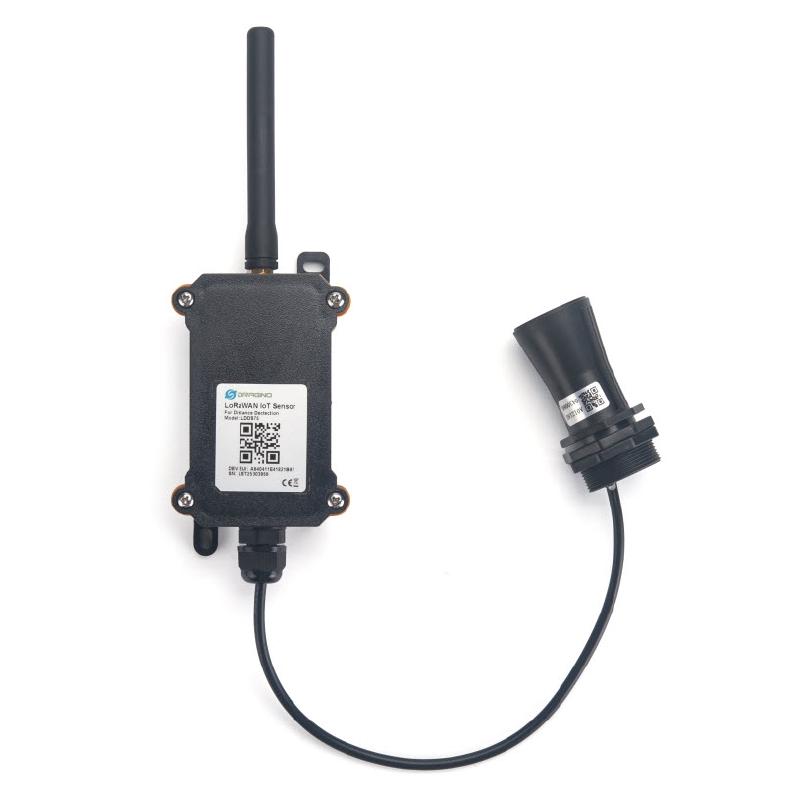

The Dragino LDDS75 consists of an ultrasonic detection sensor for measuring the distance between the sensor and a flat object. It is used to measure the distance between the sensor and a flat object. It uses temperature compensation to improve the reliability of data. The measured distance data are sent to a LoRaWAN® network for further analysis.
About this device
The Dragino LDDS75 consists of an ultrasonic detection sensor for measuring the distance between the sensor and a flat object. It is used to measure the distance between the sensor and a flat object. It uses temperature compensation to improve the reliability of data. The measured distance data are sent to a LoRaWAN® network for further analysis.
The LDDS75 supports 8 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: distance.
- 8 frequency plans supported: AU915-928, CN470-510, EU433, EU863-870, IN865-867, KR920-923, RU864-870, US902-928.
Vendor
At a glance
More from Enthu Technology Solutions India Pvt Ltd
LBT1
LDDS20
LDS01
Hardware specifications
| Model ID | ldds75 |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| CN470-510 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| EU433 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| RU864-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “LDDS75”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
