LSN50v2-D20

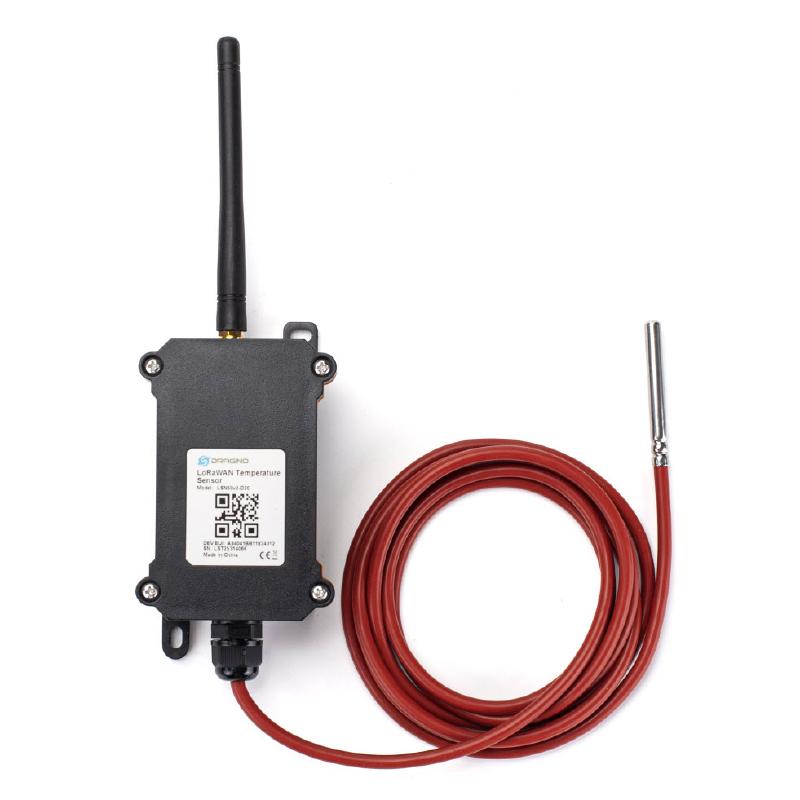

The Dragino LSN50v2-D20 consists of a temperature sensor for measuring the temperature of the air, liquid, or any object, and then uploaded to the IoT server via LoRaWAN® wireless protocol. It can be used with home and building automation, industrial monitoring and control, and irrigation systems.
About this device
The Dragino LSN50v2-D20 consists of a temperature sensor for measuring the temperature of the air, liquid, or any object, and then uploaded to the IoT server via LoRaWAN® wireless protocol. It can be used with home and building automation, industrial monitoring and control, and irrigation systems.
The LSN50v2-D20 supports 8 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: temperature.
- 8 frequency plans supported: AU915-928, CN470-510, EU433, EU863-870, IN865-867, KR920-923, RU864-870, US902-928.
Vendor
At a glance
More from Enthu Technology Solutions India Pvt Ltd
LBT1
LDDS20
LDDS75
Hardware specifications
| Model ID | lsn50v2-d20 |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| CN470-510 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| EU433 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| RU864-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “LSN50v2-D20”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
