HTLRBL32L

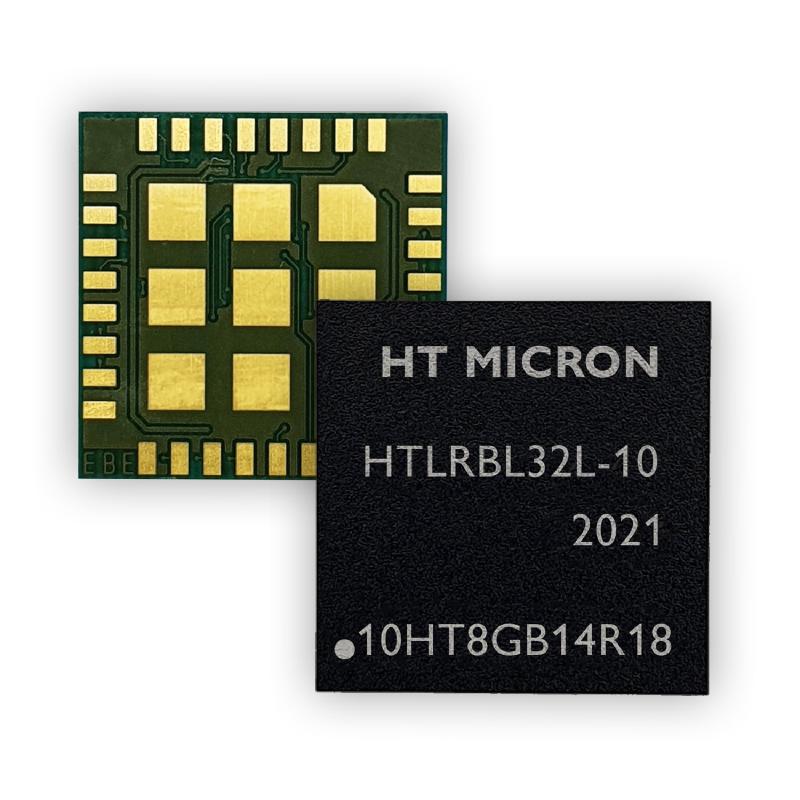

iMCP – HTLRBL32L is a highly compact and low-power wireless communication device featuring LoRa® and Bluetooth® Low Energy capabilities. In a tiny 13x13x1.1 mm package it allows easy development of solutions for both long and short ranges, whilst requiring minimum power consumption enabling years-long battery life applications.
About this device
iMCP – HTLRBL32L is a highly compact and low-power wireless communication device featuring LoRa® and Bluetooth® Low Energy capabilities. In a tiny 13x13x1.1 mm package it allows easy development of solutions for both long and short ranges, whilst requiring minimum power consumption enabling years-long battery life applications.
The HTLRBL32L supports 2 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- 2 frequency plans supported: EU863-870, US902-928.
Vendor
Hardware specifications
| Model ID | htlrbl32l |
| Dimensions | 90 × 22 × 10 mm |
| Weight | 350 g |
| Operating temperature | -20 °C to 75 °C |
| Additional radios | ble |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 22 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “HTLRBL32L”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
