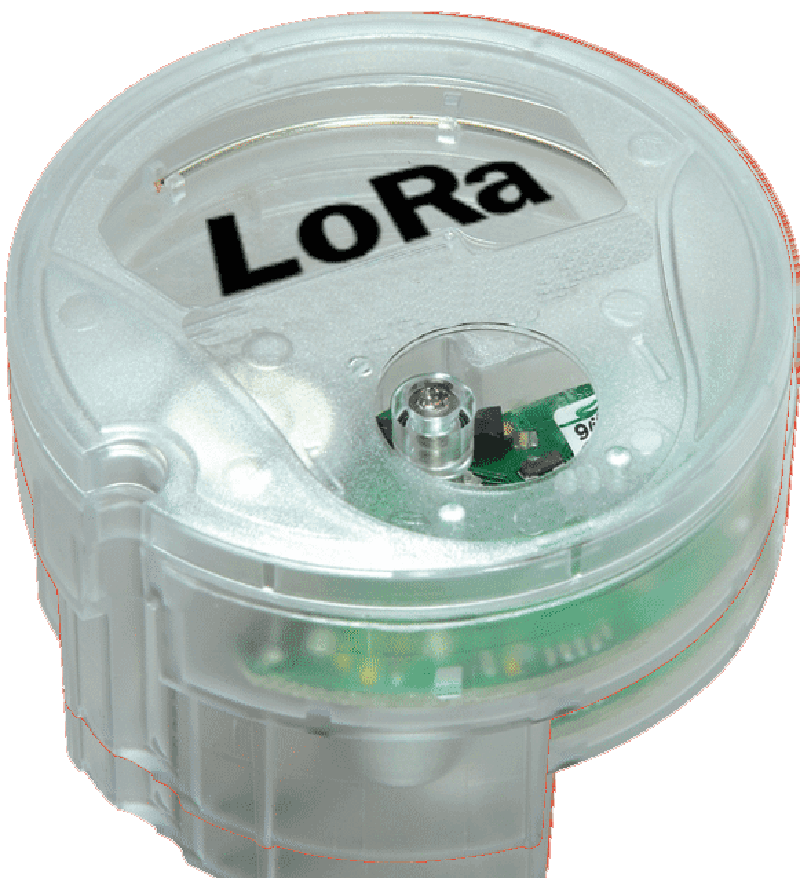

LoRa wireless water meter
By Innotas Elektronik

LoRa wireless water meter

The Innotas Modularis water meter attachment consists of a pulse sensor that counts pulses for calculating the water flow volume. It can be attached to water meters with Modularis metering shaft (E. Wehrle GmbH, Wasser-Geräte GmbH, Meibes Systemtechnik GmbH, Maddalena GmbH, QUNDIS and others), ingle-jet and multi-jet dry dial water meters, annular piston, and measuring capsule water meters.

Class A MAC v1.0.2 IP IP67 3V Lithium 1 frequency plan
Add to The Things Stack Datasheet Talk to an expert

About this device

The Innotas Modularis water meter attachment consists of a pulse sensor that counts pulses for calculating the water flow volume. It can be attached to water meters with Modularis metering shaft (E. Wehrle GmbH, Wasser-Geräte GmbH, Meibes Systemtechnik GmbH, Maddalena GmbH, QUNDIS and others), ingle-jet and multi-jet dry dial water meters, annular piston, and measuring capsule water meters.

The LoRa wireless water meter supports 1 regional frequency plan and operates as a Class A LoRaWAN device.

Key features

  • Sensors: pulse count.
  • 1 frequency plan supported: EU863-870.
  • Battery powered (3V Lithium).

Vendor

Innotas Elektronik
1 device in the repository

At a glance

Model IDwireless-water-meter
LoRaWAN classA
MAC version1.0.2
IP ratingIP67
Battery3V Lithium
Operating temp.-5 °C to 60 °C

Downloads & links

DatasheetVendor documentation
Source YAMLvendor/innotas/ on GitHub
