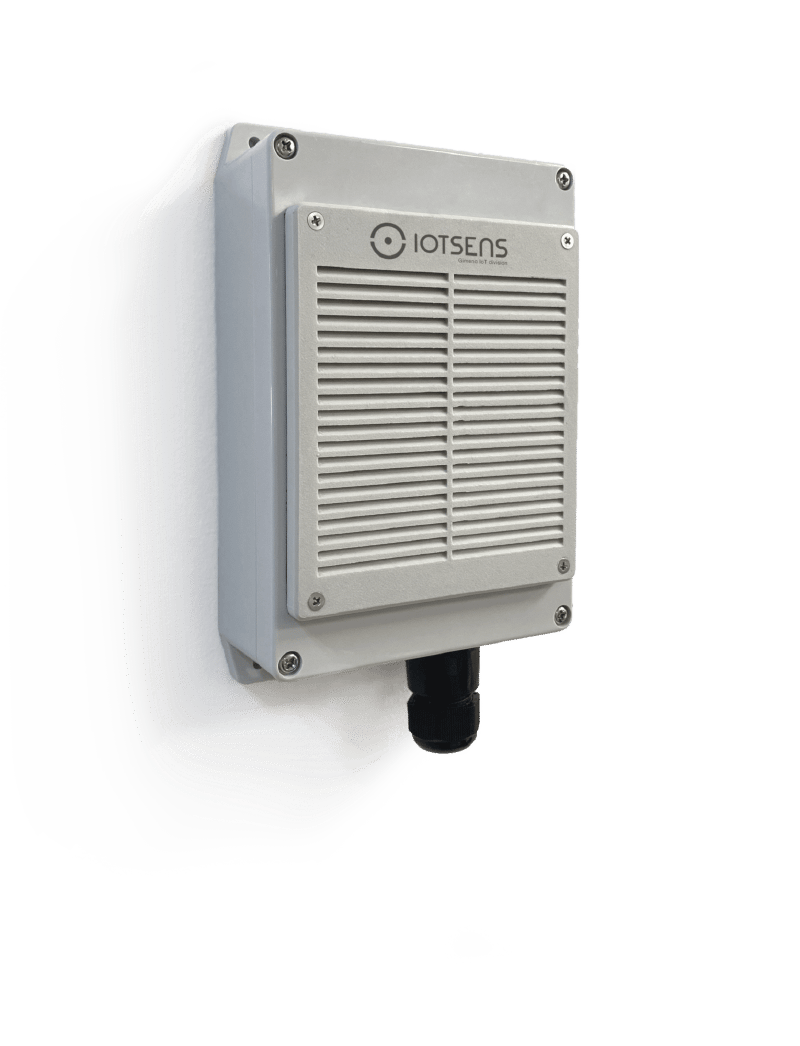

Air Quality Monitor
The IoTsens Air Quality Monitor is a device that consists of a set of environmental sensors for CO, SO2, NO2, O3, NO, H2S, CO2, PM2.5, PM10, temperature, and humidity detection and measurement. The use of this device is recommended for the evaluation of air conditions, being able to monitor the levels of contamination to make the appropriate decisions.
About this device
The IoTsens Air Quality Monitor is a device that consists of a set of environmental sensors for CO, SO2, NO2, O3, NO, H2S, CO2, PM2.5, PM10, temperature, and humidity detection and measurement. The use of this device is recommended for the evaluation of air conditions, being able to monitor the levels of contamination to make the appropriate decisions.
The Air Quality Monitor supports 4 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: co, so2, no2, false, o3, h2s, co2, tvoc, temperature, humidity, barometer, dust, pm2.5, pm10.
- 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.
Vendor
At a glance
More from IoTsens Gimeno IoT Division
Optical Distance Monitor
Sound Level Meter
Hardware specifications
| Model ID | airquality-device |
| Dimensions | 250 × 120 × 60 mm |
| Weight | 400 g |
| IP rating | IP53 |
| Operating temperature | -40 °C to 65 °C |
| Relative humidity | 0% to 1% |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | — |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | — |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | — |
| US902-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Air Quality Monitor”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
