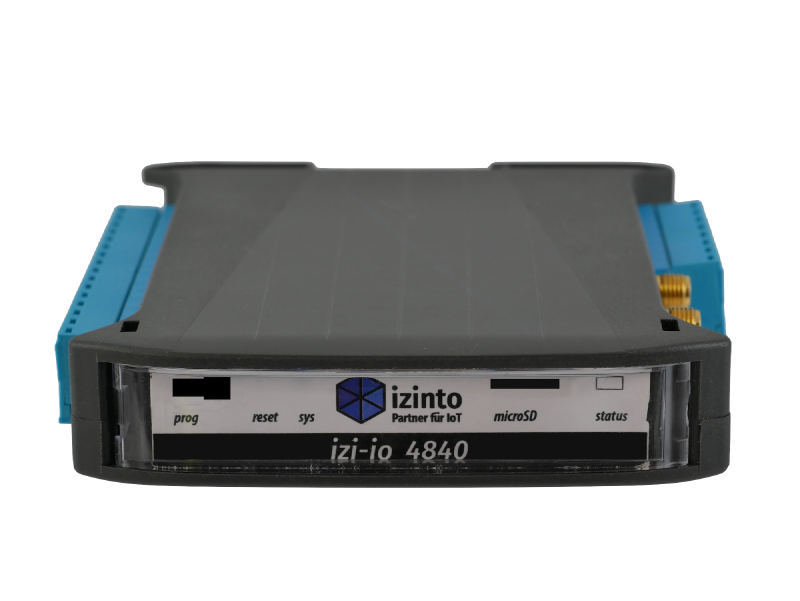

izi-io 4840 /grid - I/O Controller
Specially designed for monitoring local power grid transformation substations ("Ortsnetzstationen" in Germany, 10 kV → 230 V), the izinto izi-io 4840 /grid is an industry-strength controller with edge computing and LoRaWAN® connection that connects to a Jean Müller PLMulti-II measuring device via Modbus/RTU. Additionally, up to 8 temperature sensors and switches may be connected.
About this device
Specially designed for monitoring local power grid transformation substations ("Ortsnetzstationen" in Germany, 10 kV → 230 V), the izinto izi-io 4840 /grid is an industry-strength controller with edge computing and LoRaWAN® connection that connects to a Jean Müller PLMulti-II measuring device via Modbus/RTU. Additionally, up to 8 temperature sensors and switches may be connected.
The izi-io 4840 /grid - I/O Controller supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- Sensors: 4-20 ma, analog input, auxiliary, current, digital input, link, potentiometer, pulse count, pulse frequency, temperature, time, voltage.
- 1 frequency plan supported: EU863-870.
Vendor
At a glance
More from izinto GmbH
izi-io 4840 - I/O Controller
izi-io 4840 /heat - I/O Controller
Hardware specifications
| Model ID | izi-io-4840-grid |
| Dimensions | 119 × 22.5 × 101 mm |
| Weight | 160 g |
| IP rating | IP20 |
| Operating temperature | -30 °C to 60 °C |
| Relative humidity | 0% to 0.9% |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware grid_plmulti_v1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “izi-io 4840 /grid - I/O Controller”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
