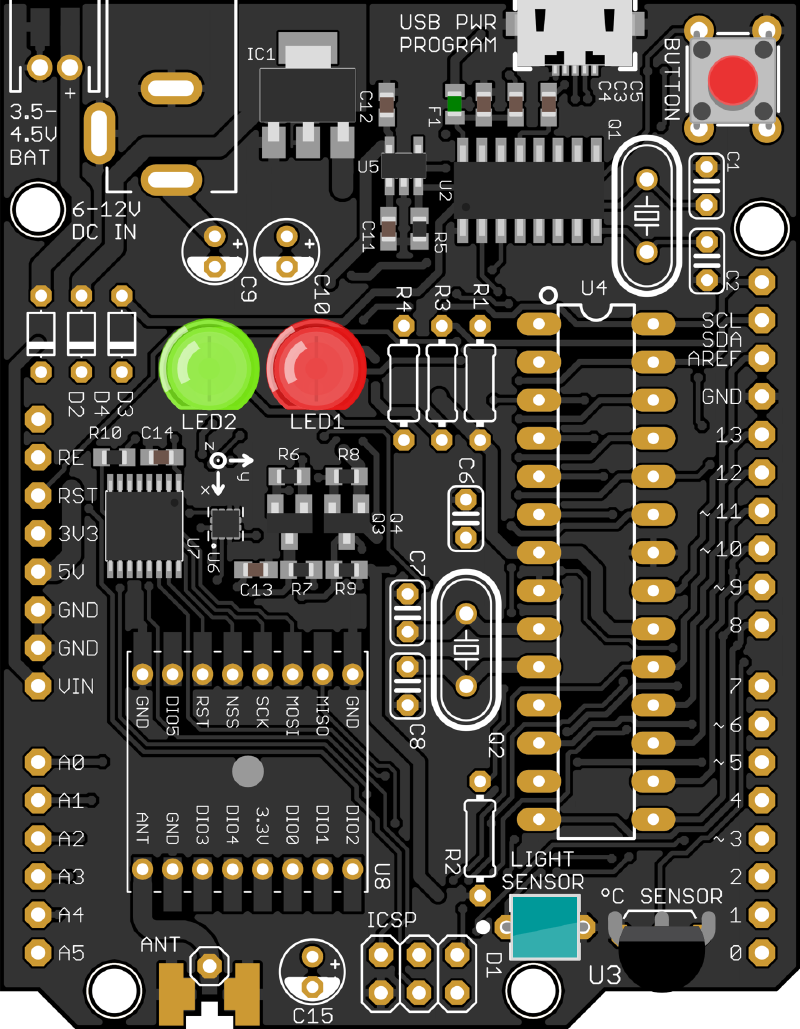

Dramco Uno
Learn about soldering, electronics and programming using this development board. Based on the Arduino Uno, supercharged with an on-board LoRaWAN modem and various sensors.
About this device
Learn about soldering, electronics and programming using this development board. Based on the Arduino Uno, supercharged with an on-board LoRaWAN modem and various sensors.
The Dramco Uno supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- Sensors: accelerometer, button, light, temperature.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 1 frequency plan supported: EU863-870.
Vendor
Hardware specifications
| Model ID | dramco-uno |
| Dimensions | 68 × 53 × 15 mm |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Dramco Uno”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
