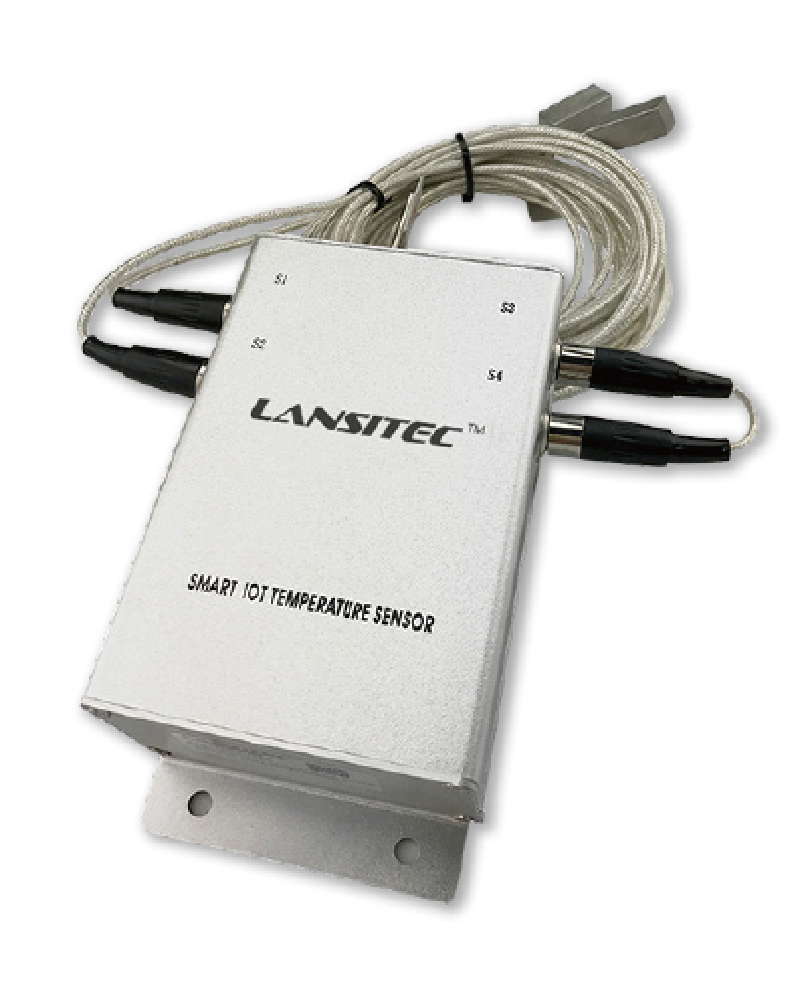

Precision Platinum Sensor
Lansitec precision platinum temperature sensor is designed based on the advanced LoRa modulation and powered by a lithium battery with 6-year operation time. It is a cost-effective LoRaWAN end device for a variety of application scenarios. Its long operation time offers low maintenance. Therefore, it is ideal for industrial use. The sensor work mode can be adjusted via the LoRaWAN Network. Lansitec sensor family is fully compatible and plug-and-play for the LoRaWAN network operation. Lansitec sensors can also work with Lansitec Wireless Data Transfer Unit (P/N:100-00175) for low-cost deployment. Please contact us for further information. Context:Busway temperature monitor, gas and fluid temperature monitor
About this device
Lansitec precision platinum temperature sensor is designed based on the advanced LoRa modulation and powered by a lithium battery with 6-year operation time. It is a cost-effective LoRaWAN end device for a variety of application scenarios. Its long operation time offers low maintenance. Therefore, it is ideal for industrial use. The sensor work mode can be adjusted via the LoRaWAN Network. Lansitec sensor family is fully compatible and plug-and-play for the LoRaWAN network operation. Lansitec sensors can also work with Lansitec Wireless Data Transfer Unit (P/N:100-00175) for low-cost deployment. Please contact us for further information. Context:Busway temperature monitor, gas and fluid temperature monitor
The Precision Platinum Sensor supports 7 regional frequency plans and operates as a Class A LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: temperature, battery, rssi.
- Payload codec included, uplink decoder ready for one-click activation.
- 7 frequency plans supported: AS923, AU915-928, CN470-510, EU863-870, IN865-867, KR920-923, US902-928.
- Battery powered (Non-chargeable lithium battery 19000mAh).
Vendor
At a glance
Hardware specifications
| Model ID | precision-platinum-sensor |
| Dimensions | 110 × 76 × 46 mm |
| Operating temperature | -40 °C to 85 °C |
| Power | Battery — Non-chargeable lithium battery 19000mAh |
| Additional radios | ble |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| AU915-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| CN470-510 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| EU863-870 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| IN865-867 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| KR920-923 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Precision Platinum Sensor”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
