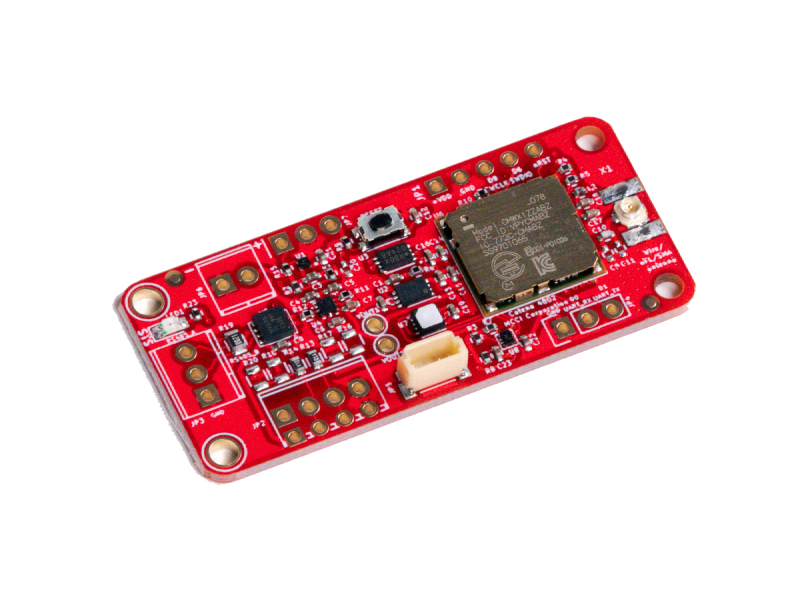

Catena® 4802 Modbus/Sensor Node
The MCCI Catena® 4802 RS-485/Sensor Node for LoRaWAN® technology networks is a complete open-source single-board IoT device that can monitor and control remote Modbus, M-Bus, and other industrial devices, while also monitoring temperature and humidity with an integrated Sensirion SHT31 sensor. It also incorporates a QWICC connector for easy connection of external I2C devices.
About this device
The MCCI Catena® 4802 RS-485/Sensor Node for LoRaWAN® technology networks is a complete open-source single-board IoT device that can monitor and control remote Modbus, M-Bus, and other industrial devices, while also monitoring temperature and humidity with an integrated Sensirion SHT31 sensor. It also incorporates a QWICC connector for easy connection of external I2C devices.
The Catena® 4802 Modbus/Sensor Node supports 6 regional frequency plans and operates as a Class A LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: auxiliary, temperature, humidity, digital input, analog input, battery.
- Payload codec included, uplink decoder ready for one-click activation.
- 6 frequency plans supported: AS923, AU915-928, EU863-870, IN865-867, KR920-923, US902-928.
- Battery powered (primary, 5V to 2.2V), user replaceable.
Vendor
At a glance
More from MCCI Corporation
Animal Activity Sensor
Catena® 4450 Node
Catena® 4460 Node
Hardware specifications
| Model ID | catena4802 |
| Dimensions | 51 × 23 × 5 mm |
| Operating temperature | -20 °C to 85 °C |
| Relative humidity | 0% to 0.95% |
| Power | Battery — primary, 5V to 2.2V, replaceable |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 0.5.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
Firmware 0.1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Catena® 4802 Modbus/Sensor Node”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
