MAMWLE

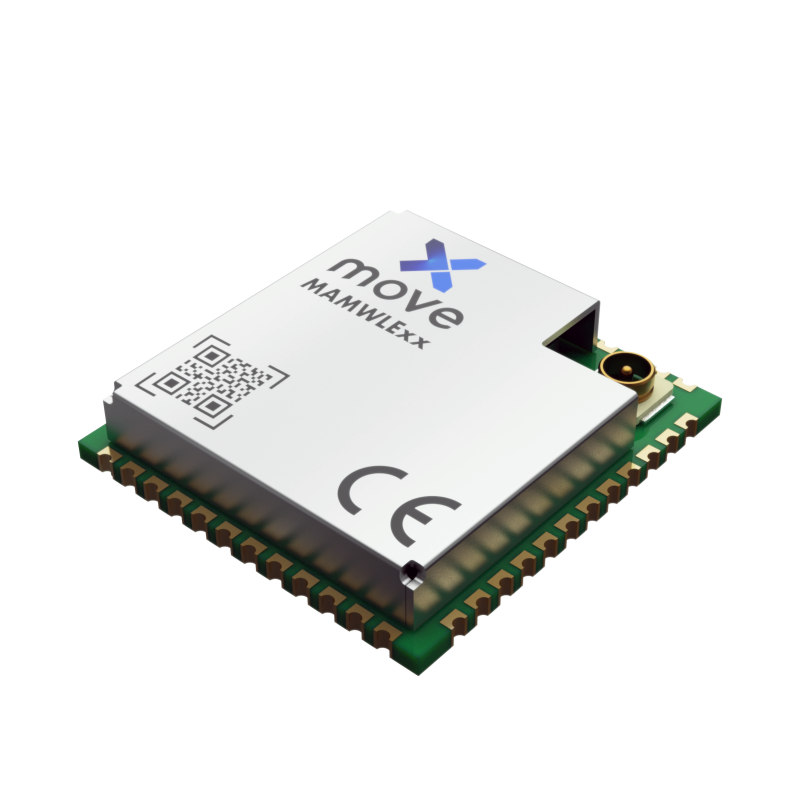

MAMWLE is a very tiny low power radio module designed by Move-X, which can be easily integrated into any PCB to enable it for wireless communication. It combines an STM32WLE microprocessor with a Semtech SX1261/2 sub-GHz radio into a 15x16 millimeter module.
About this device
MAMWLE is a very tiny low power radio module designed by Move-X, which can be easily integrated into any PCB to enable it for wireless communication. It combines an STM32WLE microprocessor with a Semtech SX1261/2 sub-GHz radio into a 15x16 millimeter module.
The MAMWLE supports 3 regional frequency plans and operates as a Class A/C LoRaWAN device.
Key features
- 3 frequency plans supported: AU915-928, EU863-870, US902-928.
Vendor
Hardware specifications
| Model ID | mamwle |
| Dimensions | 15.5 × 16.5 × 2 mm |
| Operating temperature | -40 °C to 85 °C |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “MAMWLE”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
