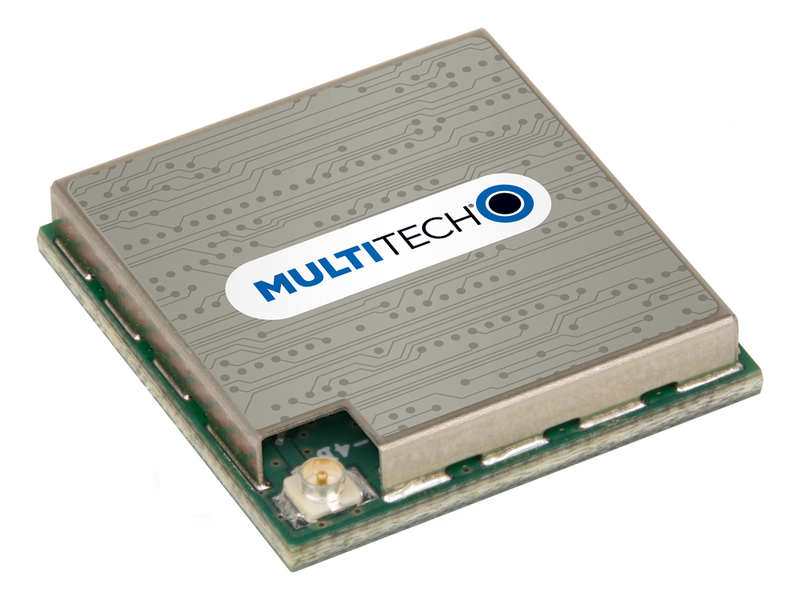

MultiTech xDot® Long Range LoRa Module
The MultiTech xDot® is a secure, CE/FCC/RCM/GITEKI certified, Arm® Mbed™ programmable, low-power RF module, that provides long-range, low bit rate M2M data connectivity to sensors, industrial equipment, and remote appliances. The xDot is LoRaWAN® 1.0.2 compliant, providing bi-directional data communication up to 10 miles/15 km line-of-sight and 1-3 miles / 2 km into buildings, using sub-GHz ISM bands in North America, Europe, Australia (AU915), Asia Pacific (AS923), India (IN865) and Korea (KR920).
About this device
The MultiTech xDot® is a secure, CE/FCC/RCM/GITEKI certified, Arm® Mbed™ programmable, low-power RF module, that provides long-range, low bit rate M2M data connectivity to sensors, industrial equipment, and remote appliances. The xDot is LoRaWAN® 1.0.2 compliant, providing bi-directional data communication up to 10 miles/15 km line-of-sight and 1-3 miles / 2 km into buildings, using sub-GHz ISM bands in North America, Europe, Australia (AU915), Asia Pacific (AS923), India (IN865) and Korea (KR920).
The MultiTech xDot® Long Range LoRa Module supports 6 regional frequency plans and operates as a Class A/C LoRaWAN device.
Key features
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 6 frequency plans supported: AS923, AU915-928, EU863-870, IN865-867, KR920-923, US902-928.
Vendor
Hardware specifications
| Model ID | multi-tech-xdot |
| Dimensions | 23.6 × 23.6 × 3.51 mm |
| Operating temperature | -40 °C to 85 °C |
| Relative humidity | 0.2% to 0.9% |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 3.5.5
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A / C | OTAA | 36 dBm | — |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A / C | OTAA | 36 dBm | — |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A / C | OTAA | 10 dBm | ✓ Yes |
| IN865-867 | 1.0.2 | RP001-1.0.2-RevB | A / C | OTAA | 10 dBm | — |
| KR920-923 | 1.0.2 | RP001-1.0.2-RevB | A / C | OTAA | 36 dBm | — |
| US902-928 | 1.0.2 | RP001-1.0.2-RevB | A / C | OTAA | 36 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “MultiTech xDot® Long Range LoRa Module”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
