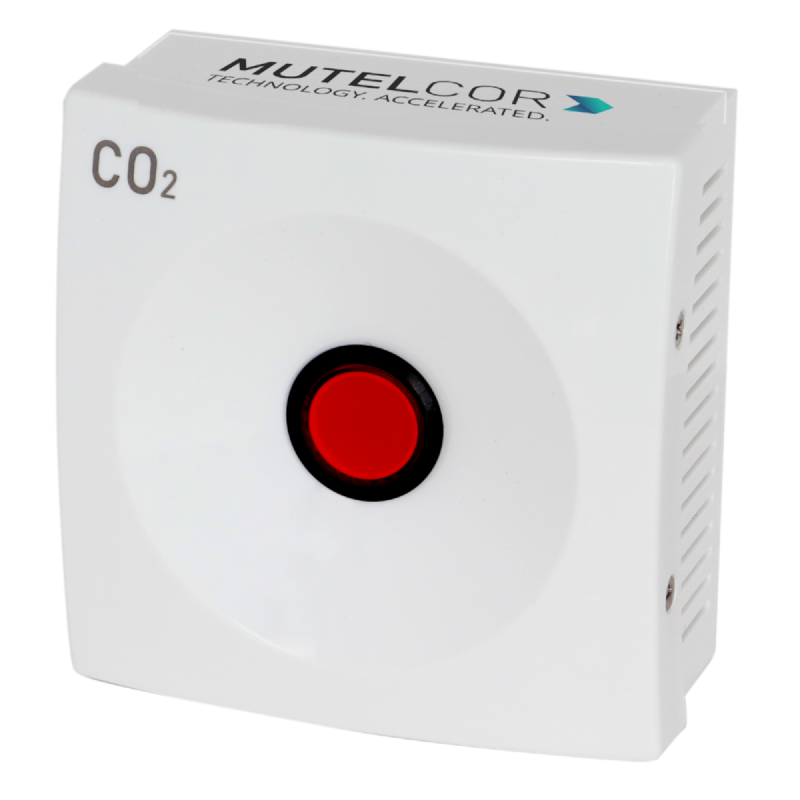

Smart CO2 LoRa Sensor (IP30, IP54)
The Mutelcor Smart CO2 LoRa Sensor is a unique power-driven Air Quality sensor. It measures CO2, Temperature and Humidity every 2 seconds with a robust dual-channel NDIR sensor and offers automatic Traffic Light Feature with local and LoRa-based Alarms based on multi-color LEDs and Sound. The device offers plug-and-play handling with multiple Threshold settings and quick and easy Calibration.
About this device
The Mutelcor Smart CO2 LoRa Sensor is a unique power-driven Air Quality sensor. It measures CO2, Temperature and Humidity every 2 seconds with a robust dual-channel NDIR sensor and offers automatic Traffic Light Feature with local and LoRa-based Alarms based on multi-color LEDs and Sound. The device offers plug-and-play handling with multiple Threshold settings and quick and easy Calibration.
The Smart CO2 LoRa Sensor (IP30, IP54) supports 6 regional frequency plans and operates as a Class A LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: co2, button, humidity, temperature, digital input.
- Payload codec included, uplink decoder ready for one-click activation.
- 6 frequency plans supported: AS923, AU915-928, EU863-870, IN865-867, KR920-923, US902-928.
Vendor
At a glance
Hardware specifications
| Model ID | mtc-co2-01 |
| Dimensions | 95 × 95 × 40 mm |
| Weight | 150 g |
| IP rating | IP30 |
| Operating temperature | -18 °C to 55 °C |
Sensors & capabilities
Certifications & compliance
| Safety | 62368-1 — IEC |
| Radio equipment | 301 489-1 (2.2.0) — ETSI |
| Radio equipment | 301 489-3 (2.1.0) — ETSI |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.4.7
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Smart CO2 LoRa Sensor (IP30, IP54)”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
