Sampols

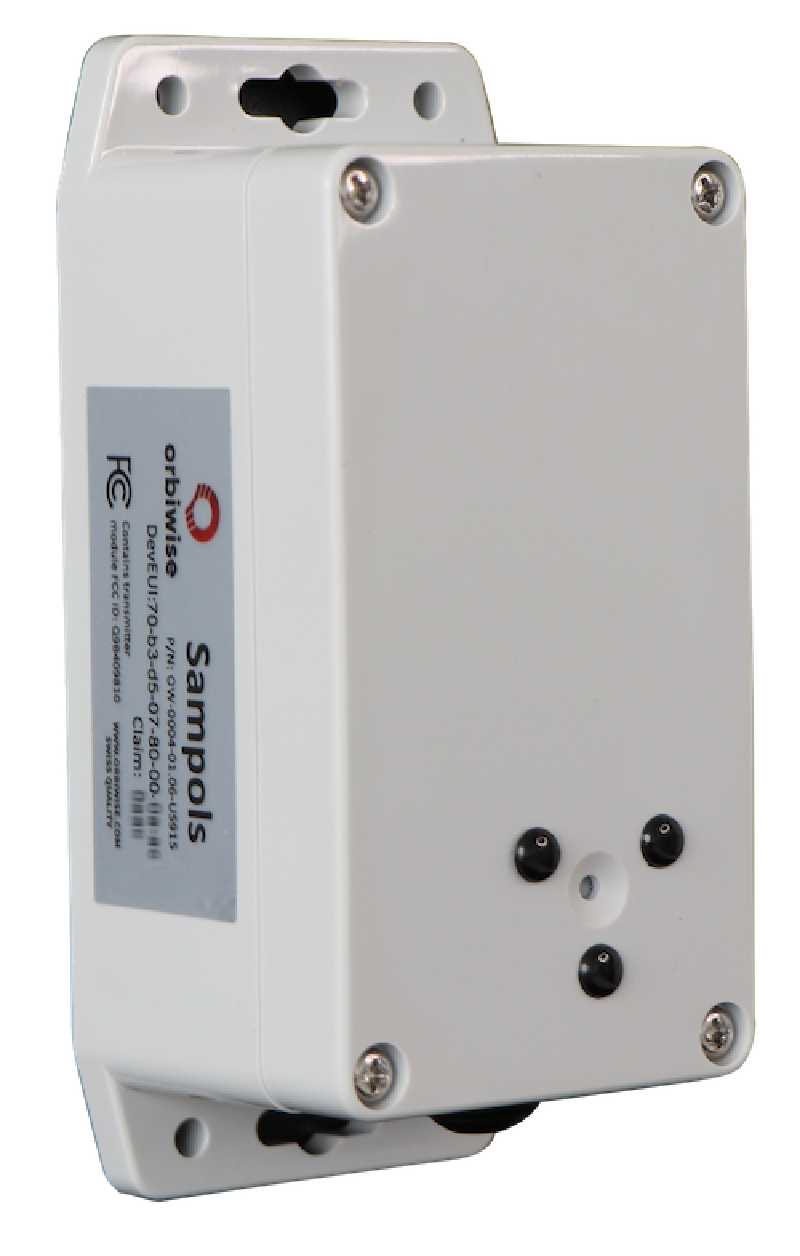

The Sampols noise sensor is a high-performance and low-cost remote wireless sensor for acoustic noise (sound) measurement.It continuously measures and compute the equivalent noise level averaged over 1 second in dBA (Leq1s) and periodically transmits reports containing noise level distribution information (by default mean, minimum, maximum of Leq1s, L10, L50 L90 and L95) and meta data such as temperature or battery level. Sampols noise sensor is autonomous, easy to deploy and can perform continuous measurements over long periods of time.
About this device
The Sampols noise sensor is a high-performance and low-cost remote wireless sensor for acoustic noise (sound) measurement.It continuously measures and compute the equivalent noise level averaged over 1 second in dBA (Leq1s) and periodically transmits reports containing noise level distribution information (by default mean, minimum, maximum of Leq1s, L10, L50 L90 and L95) and meta data such as temperature or battery level. Sampols noise sensor is autonomous, easy to deploy and can perform continuous measurements over long periods of time.
The Sampols supports 4 regional frequency plans and operates as a Class A/C LoRaWAN device.
Key features
- Sensors: sound.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 4 frequency plans supported: AS923, EU863-870, IN865-867, US902-928.
Vendor
Hardware specifications
| Model ID | sampols21 |
| Dimensions | 25 × 115 × 55 mm |
| Weight | 2 g |
| Operating temperature | -40 °C to 85 °C |
| Relative humidity | 0% to 0.95% |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 2.1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.4 | RP002-1.0.1 | A / C | OTAA | 16 dBm | ✓ Yes |
| EU863-870 | 1.0.4 | RP002-1.0.1 | A / C | OTAA | 16 dBm | ✓ Yes |
| IN865-867 | 1.0.4 | RP002-1.0.1 | A / C | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.4 | RP002-1.0.1 | A / C | OTAA | 16 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Sampols”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
