Wisblock Starter Kit RAK4631

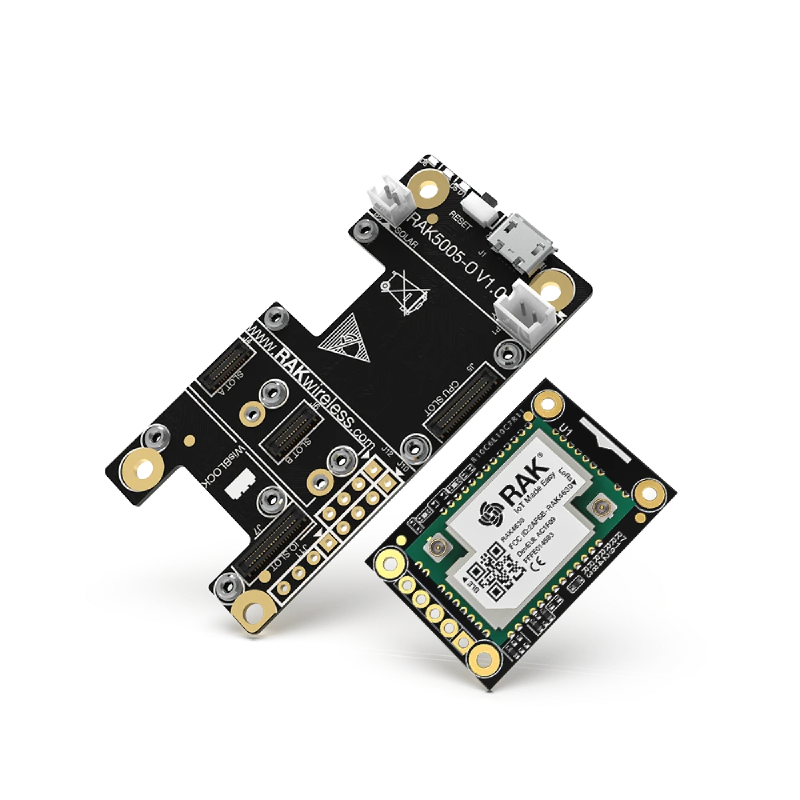

The RAKwireless RAK4631 is a WisBlock Core module that can be plugged into the WisBlock Base allows adding WisBlock sensor modules such as environmental sensor, GNSS location module, temperature & humidity sensor, 3-axis acceleration sensor, ambient light sensor, barometric pressure sensor, infrared temperature sensor, etc. The RAK4631 is based on the 32 bit ARM® Cortex™ - M4 CPU that supports LoRaWAN® and Bluetooth protocols.
About this device
The RAKwireless RAK4631 is a WisBlock Core module that can be plugged into the WisBlock Base allows adding WisBlock sensor modules such as environmental sensor, GNSS location module, temperature & humidity sensor, 3-axis acceleration sensor, ambient light sensor, barometric pressure sensor, infrared temperature sensor, etc. The RAK4631 is based on the 32 bit ARM® Cortex™ - M4 CPU that supports LoRaWAN® and Bluetooth protocols.
The Wisblock Starter Kit RAK4631 supports 2 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- 2 frequency plans supported: EU863-870, US902-928.
- Battery powered (Li-Ion / Li-Po, 1024 mAh minimum capacity, JST connector), user replaceable.
Vendor
At a glance
Hardware specifications
| Model ID | wisblock-4631 |
| Dimensions | 60 × 30 × 0 mm |
| Weight | 35 g |
| Power | Battery — Li-Ion / Li-Po, 1024 mAh minimum capacity, JST connector, replaceable |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.2.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.2 | RP001-1.0.2 | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 22 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Wisblock Starter Kit RAK4631”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
