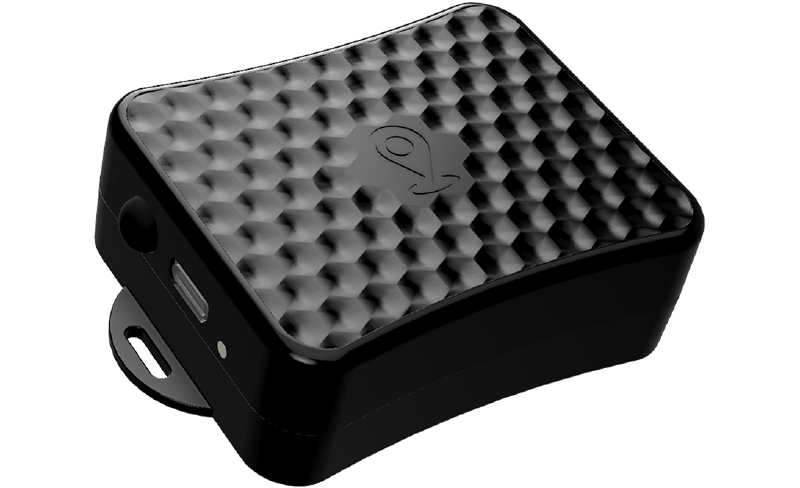

Lynx - Micro LoRa GPS Tracker
The Lynx is a micro LoRa GPS tracker meant for use on small assets such as bikes and pets. Charging is made easy with a built in micro-usb charging port and an LED status indicator. Product of BeeSecure by Rivercity Innovations Ltd.
About this device
The Lynx is a micro LoRa GPS tracker meant for use on small assets such as bikes and pets. Charging is made easy with a built in micro-usb charging port and an LED status indicator. Product of BeeSecure by Rivercity Innovations Ltd.
The Lynx - Micro LoRa GPS Tracker supports 3 regional frequency plans and operates as a Class A LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: accelerometer, gps, temperature.
- Payload codec included, uplink decoder ready for one-click activation.
- 3 frequency plans supported: AU915-928, EU863-870, US902-928.
- Battery powered (900mAh Li-Po (rechargeable)), user replaceable.
Vendor
At a glance
More from Rivercity Innovations Ltd.
TxH - Temperature & Humidity Sensor
Hardware specifications
| Model ID | lynx |
| Dimensions | 44 × 66 × 22 mm |
| Weight | 52 g |
| IP rating | IP64 |
| Operating temperature | -20 °C to 60 °C |
| Relative humidity | 0% to 1% |
| Power | Battery — 900mAh Li-Po (rechargeable), replaceable |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.2.2.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A | OTAA | 20 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “Lynx - Micro LoRa GPS Tracker”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
