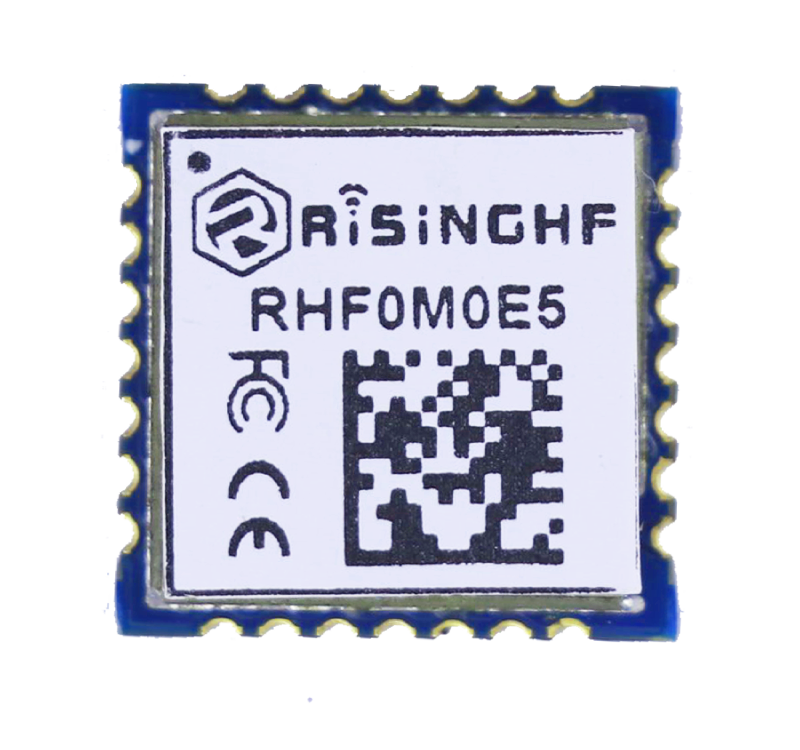

RHF0M0E5
The RisingHF RHF0M0E5 is a low-cost, ultra-low power, ultra-small LoRaWAN® module that adopts ST system-level package chip STM32WLE5JC, integrated high-performance LoRa® SX126X IP, and ultra-low power consumption MCU. The module is embedded with the LoRaWAN protocol.
About this device
The RisingHF RHF0M0E5 is a low-cost, ultra-low power, ultra-small LoRaWAN® module that adopts ST system-level package chip STM32WLE5JC, integrated high-performance LoRa® SX126X IP, and ultra-low power consumption MCU. The module is embedded with the LoRaWAN protocol.
The RHF0M0E5 supports 8 regional frequency plans and operates as a Class A/B/C LoRaWAN device.
Key features
- 8 frequency plans supported: AS923, AU915-928, CN470-510, CN779-787, EU863-870, IN865-867, KR920-923, US902-928.
Vendor
At a glance
More from RuiXingHengFang Network(Shenzhen) Co.
RHF0M003
RHF1S052 - Water Meter
RHF1S213 - Ultrasonic Water Meter
Hardware specifications
| Model ID | rhf0m0e5 |
| Dimensions | 12 × 12 × 2.5 mm |
| Operating temperature | -40 °C to 85 °C |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware V4
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| CN470-510 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| CN779-787 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 22 dBm | — |
Frequency plan coverage
Also supported: CN779-787
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “RHF0M0E5”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
