RHF3MR01 - Signal Relay

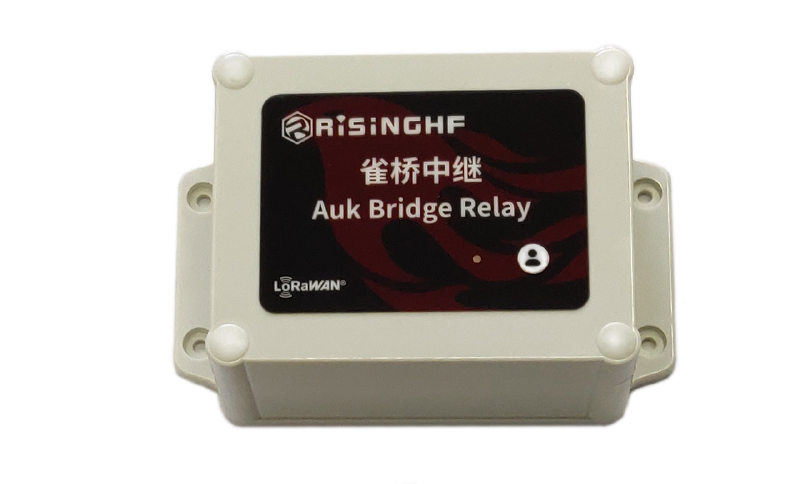

The RisingHF RHF3MR01 auk bridge relay consists of a relay, buttons, and LED indicators. It can be used to turn on and off any electronic or electrical appliance remotely through the LoRaWAN® network.
About this device
The RisingHF RHF3MR01 auk bridge relay consists of a relay, buttons, and LED indicators. It can be used to turn on and off any electronic or electrical appliance remotely through the LoRaWAN® network.
The RHF3MR01 - Signal Relay supports 9 regional frequency plans and operates as a Class A/B LoRaWAN device.
Key features
- Sensors: button.
- 9 frequency plans supported: AS923, AU915-928, CN470-510, CN779-787, EU433, EU863-870, IN865-867, KR920-923, US902-928.
- Battery powered (Lithium thionyl chloride battery).
Vendor
At a glance
More from RuiXingHengFang Network(Shenzhen) Co.
RHF0M003
RHF0M0E5
RHF1S052 - Water Meter
Hardware specifications
| Model ID | rhf3mr01 |
| Dimensions | 94 × 148 × 60 mm |
| IP rating | IP68 |
| Operating temperature | -20 °C to 60 °C |
| Power | Battery — Lithium thionyl chloride battery |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware V3
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
| AU915-928 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
| CN470-510 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 20 dBm | — |
| CN779-787 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
| EU433 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 20 dBm | — |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
| KR920-923 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / B | OTAA | 14 dBm | — |
Frequency plan coverage
Also supported: CN779-787
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “RHF3MR01 - Signal Relay”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
