NLN500A

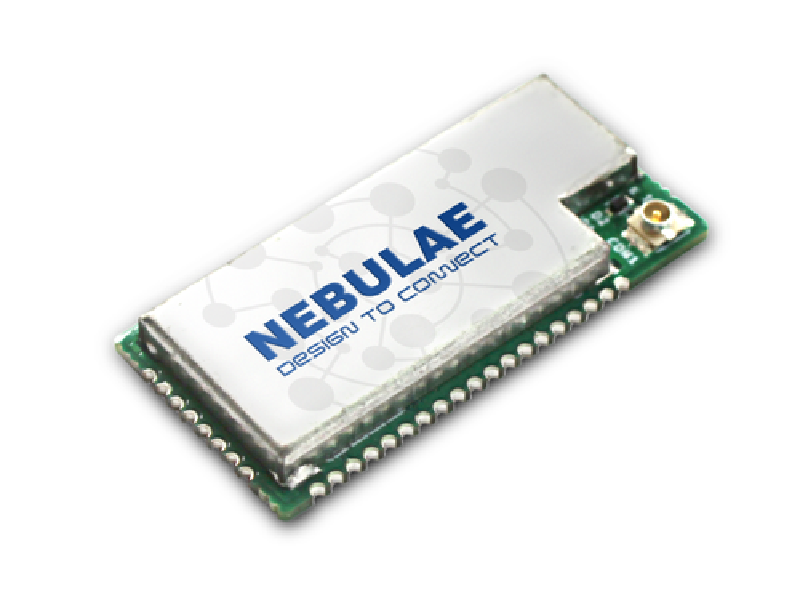

The NebuLink Node NLN500a is the First and Smallest STM32WL Based LoRa Module. It is built on the STM32WL SoC which has an Embedded LoRaWAN Transceiver for a wide range of Smart Applications. It offers long-range, low-power, and secure data transmission for M2M and IoT applications. This Module is designed to be extremely low-power and is based on the high-performance STM32WLE5JC Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 48 MHz. This core implements a full set of DSP instructions and an independent memory protection unit (MPU) that enhances the application security.
About this device
The NebuLink Node NLN500a is the First and Smallest STM32WL Based LoRa Module. It is built on the STM32WL SoC which has an Embedded LoRaWAN Transceiver for a wide range of Smart Applications. It offers long-range, low-power, and secure data transmission for M2M and IoT applications. This Module is designed to be extremely low-power and is based on the high-performance STM32WLE5JC Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 48 MHz. This core implements a full set of DSP instructions and an independent memory protection unit (MPU) that enhances the application security.
The NLN500A supports 3 regional frequency plans and operates as a Class A/C LoRaWAN device.
Key features
- 3 frequency plans supported: EU863-870, IN865-867, US902-928.
Vendor
At a glance
More from System Level Solutions (India) Pvt. Ltd.
VOLC2180
Hardware specifications
| Model ID | nln500a |
| Dimensions | 16 × 32.6 × 3.5 mm |
| Weight | 18 g |
| Operating temperature | -20 °C to 75 °C |
Sensors & capabilities
No sensors listed for this device.
Certifications & compliance
| Radio equipment | ETA — WPC |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware LoRaWAN_End_Node v1.0.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 16 dBm | — |
| IN865-867 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 30 dBm | — |
| US902-928 | 1.0.3 | RP001-1.0.3-RevA | A / C | OTAA | 30 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “NLN500A”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
