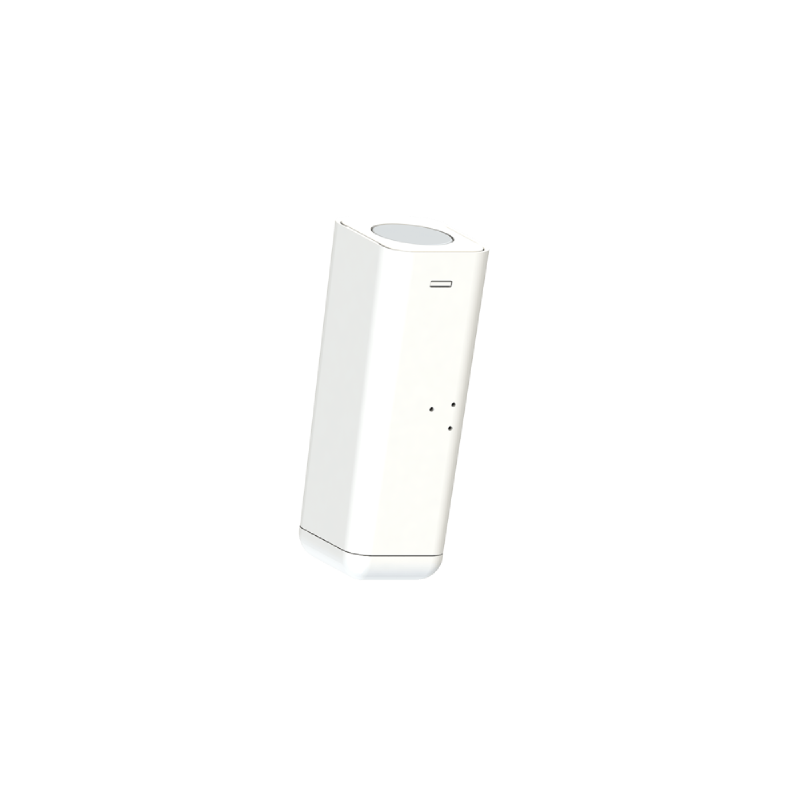

FINCH SafeAlert Indoor Sensor
TEKTELIC’s FINCH [SafeAlert Indoor Sensor] is a compact, mobile, wireless BLE panic button that transmits an emergency signal from any location. FINCH is ideal for lone workers, seniors, and children to signal for help in an emergency situation. When triggered, this device instantly sends an SOS message containing location details to designated support staff or security personnel to ensure a rapid response in the event of a panic situation. This device combines the long-range, low-power communication capabilities of LoRaWAN® with the universal availability and reliability of Bluetooth Low Energy (BLE) to provide real-time location information. FINCH is seamlessly integrated with TEKTELIC’s endto-end IoT solution
About this device
TEKTELIC’s FINCH [SafeAlert Indoor Sensor] is a compact, mobile, wireless BLE panic button that transmits an emergency signal from any location. FINCH is ideal for lone workers, seniors, and children to signal for help in an emergency situation. When triggered, this device instantly sends an SOS message containing location details to designated support staff or security personnel to ensure a rapid response in the event of a panic situation. This device combines the long-range, low-power communication capabilities of LoRaWAN® with the universal availability and reliability of Bluetooth Low Energy (BLE) to provide real-time location information. FINCH is seamlessly integrated with TEKTELIC’s endto-end IoT solution
The FINCH SafeAlert Indoor Sensor supports 7 regional frequency plans and operates as a Class A LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: button.
- Payload codec included, uplink decoder ready for one-click activation.
- 7 frequency plans supported: AS923, AU915-928, EU863-870, IN865-867, KR920-923, RU864-870, US902-928.
- Battery powered (AA LTC).
Vendor
At a glance
Hardware specifications
| Model ID | t0007392-finch |
| Dimensions | 22 × 25 × 70 mm |
| IP rating | IP30 |
| Operating temperature | -20 °C to 85 °C |
| Power | Battery — AA LTC |
Sensors & capabilities
Certifications & compliance
| Safety | 60950-1 — IEC |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.0.17
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | — |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | — |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | — |
| IN865-867 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | — |
| KR920-923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | — |
| RU864-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | — |
| US902-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “FINCH SafeAlert Indoor Sensor”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
