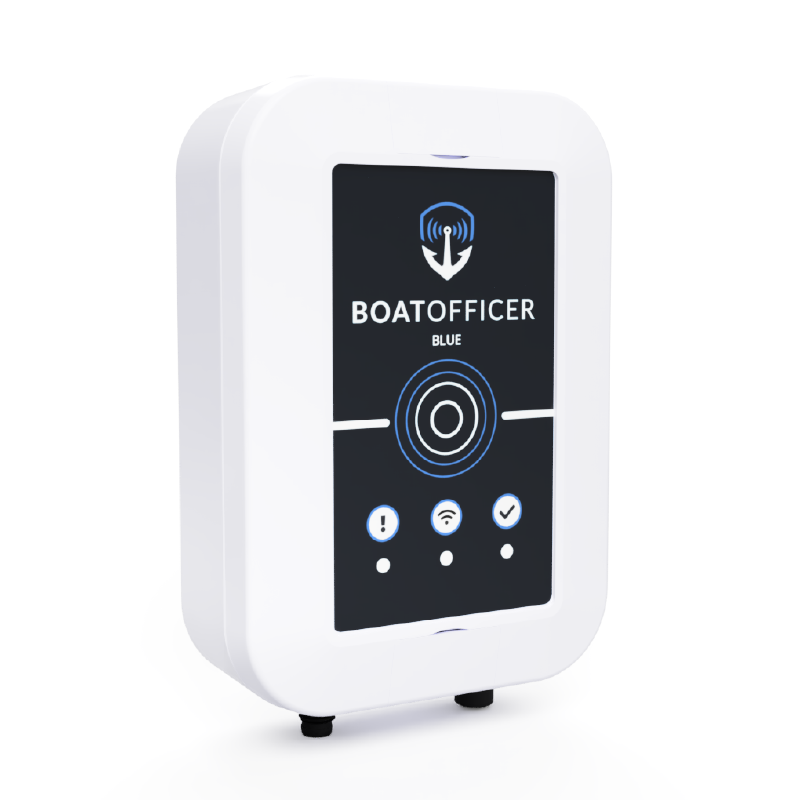

BoatOfficer Blue
The BoatOfficer Blue is a tracking device that measures the position of a boat using the integrated GPS tracker. In addition to that, it has an integrated temperature sensor and a vibration sensor. It also supports adding sensor cables for monitoring battery voltage, detecting motor activity, and detecting water. The collected data is transferred via LoRaWAN®.
About this device
The BoatOfficer Blue is a tracking device that measures the position of a boat using the integrated GPS tracker. In addition to that, it has an integrated temperature sensor and a vibration sensor. It also supports adding sensor cables for monitoring battery voltage, detecting motor activity, and detecting water. The collected data is transferred via LoRaWAN®.
The BoatOfficer Blue supports 1 regional frequency plan and operates as a Class A LoRaWAN device.
Key features
- Sensors: button, gps, temperature, voltage.
- 1 frequency plan supported: EU863-870.
Vendor
Hardware specifications
| Model ID | boatofficerblue |
| Dimensions | 40 × 90 × 140 mm |
| Weight | 250 g |
| IP rating | IP65 |
| Operating temperature | -20 °C to 60 °C |
| Relative humidity | 0% to 1% |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 1.2
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 14 dBm | — |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “BoatOfficer Blue”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
