RM200 - Digital Output Relay Module

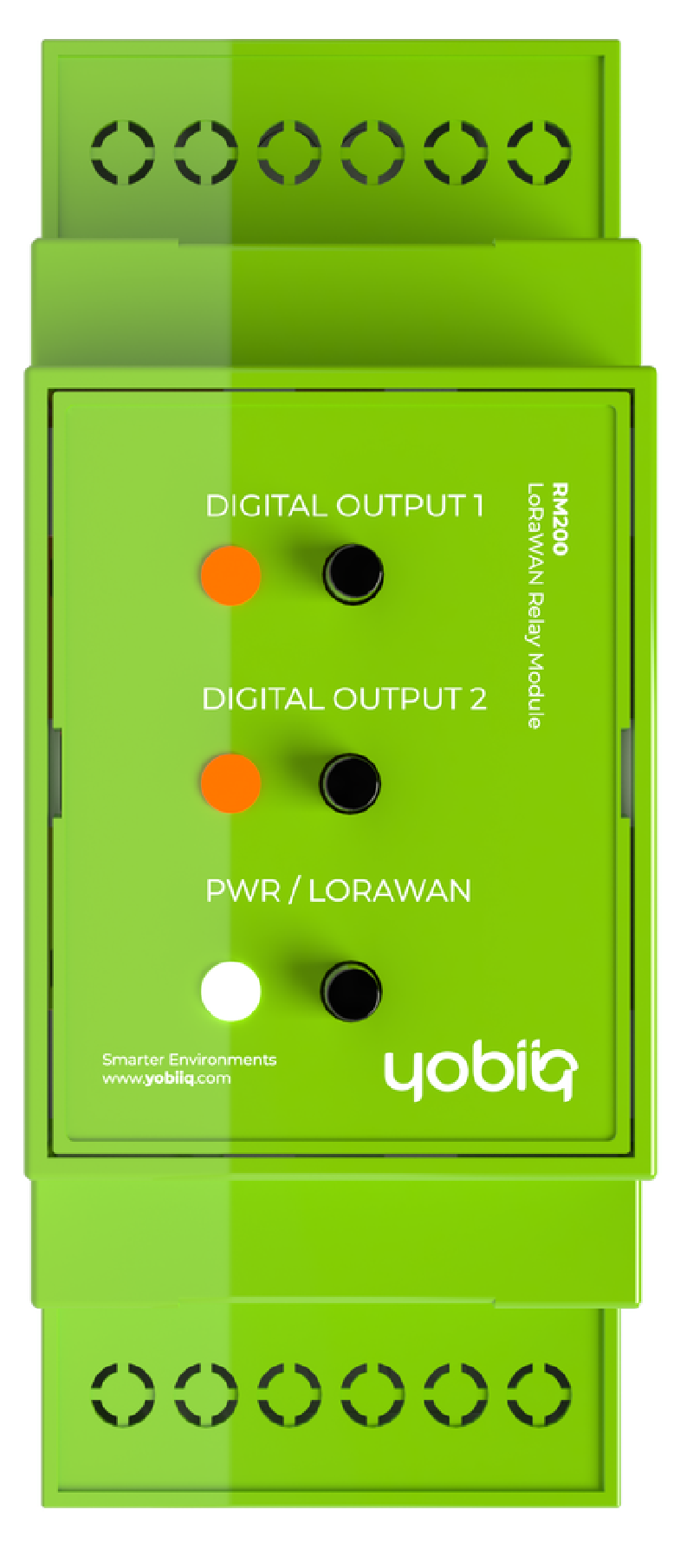

The YOBIIQ RM200 makes it possible to control digital outputs by utilizing remote automation, We have developed the iQ Digital Controller with 2 fully isolated, seperate relays. Each relay is capable of switching up to a 10A 230V AC. Using the override buttons on the device you are able to control the relay output regardless of the network connection.
About this device
The YOBIIQ RM200 makes it possible to control digital outputs by utilizing remote automation, We have developed the iQ Digital Controller with 2 fully isolated, seperate relays. Each relay is capable of switching up to a 10A 230V AC. Using the override buttons on the device you are able to control the relay output regardless of the network connection.
The RM200 - Digital Output Relay Module supports 1 regional frequency plan and operates as a Class A/C LoRaWAN device. A payload codec is published in the repository, so uplinks are decoded automatically when you onboard it to The Things Stack.
Key features
- Sensors: temperature, humidity, snr, rssi, button.
- Payload codec included, uplink decoder ready for one-click activation.
- 1 frequency plan supported: EU863-870.
Vendor
At a glance
Hardware specifications
| Model ID | iq-rm200-lrw |
| Additional radios | ble |
Sensors & capabilities
Certifications & compliance
| Safety | 61326-1:2021 — IEC |
| Safety | 61000-6-2:2019 — IEC |
| Safety | 301489-3 V2.1.1 — IEC |
| Safety | 300220-2 V3.1.1 — IEC |
| Safety | 62479:2010 — IEC |
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 2.1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| EU863-870 | 1.0.4 | RP002-1.0.3 | A / C | OTAA | 16 dBm | — |
Frequency plan coverage
Live decoder playground
Decode any hex payload client-side with the device's published codec, the exact code The Things Stack runs.
// pick an example or paste a payload, then Decode
Example uplink from The Things Stack
The full JSON message your application receives via MQTT or webhook when this device sends the payload above, raw bytes, decoded fields and radio metadata included.
// decode a payload above to see the full envelope
Codec source
// loading codec…
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “RM200 - Digital Output Relay Module”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and decoded uplinks in the Live data tab.
