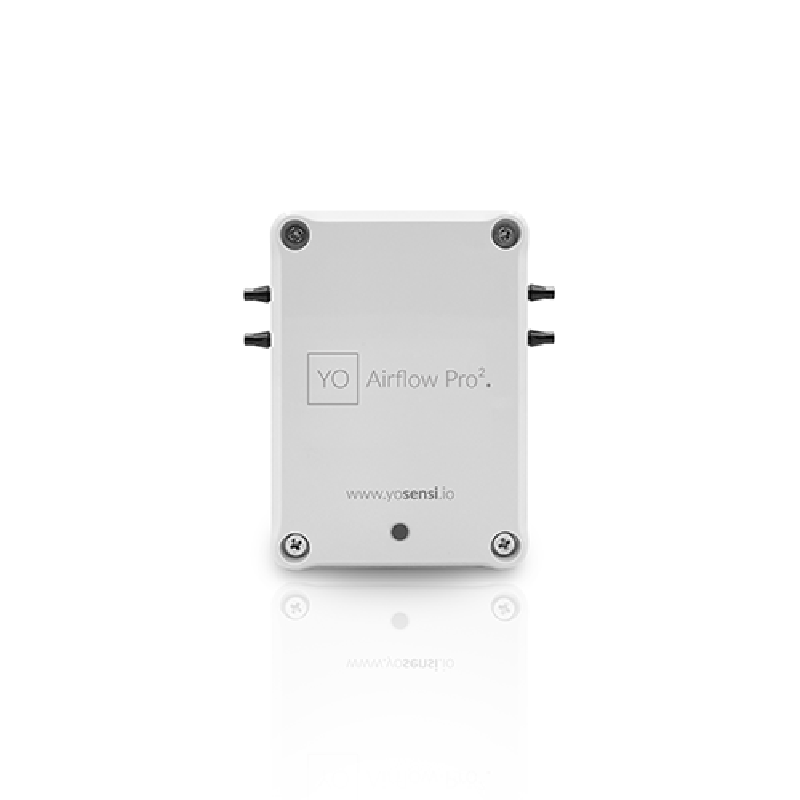

YO Airflow Pro Dual
The YO Airflow Pro dual is equipped with two differential pressure sensors. It can be used to verify the dirtiness of air filters and control the pressure in air conditioning systems and air blowers. Other uses include controlling and monitoring airflow and air pressure in fan coil units. The device communicates wirelessly over LoRaWAN.
About this device
The YO Airflow Pro dual is equipped with two differential pressure sensors. It can be used to verify the dirtiness of air filters and control the pressure in air conditioning systems and air blowers. Other uses include controlling and monitoring airflow and air pressure in fan coil units. The device communicates wirelessly over LoRaWAN.
The YO Airflow Pro Dual supports 4 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: temperature, humidity, pressure.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.
- Battery powered (3 x AA (3 x 1.5V)), user replaceable.
Vendor
At a glance
More from Yosensi Sp. z o.o.
YO 360
YO Agribox
YO Airflow
Hardware specifications
| Model ID | yo-airflow-pro-dual |
| Dimensions | 88 × 64 × 42 mm |
| Weight | 307 g |
| IP rating | IP67 |
| Power | Battery — 3 x AA (3 x 1.5V), replaceable |
| Additional radios | ble |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 3.6.1
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 30 dBm | ✓ Yes |
Firmware 3.6.2
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 30 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “YO Airflow Pro Dual”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
