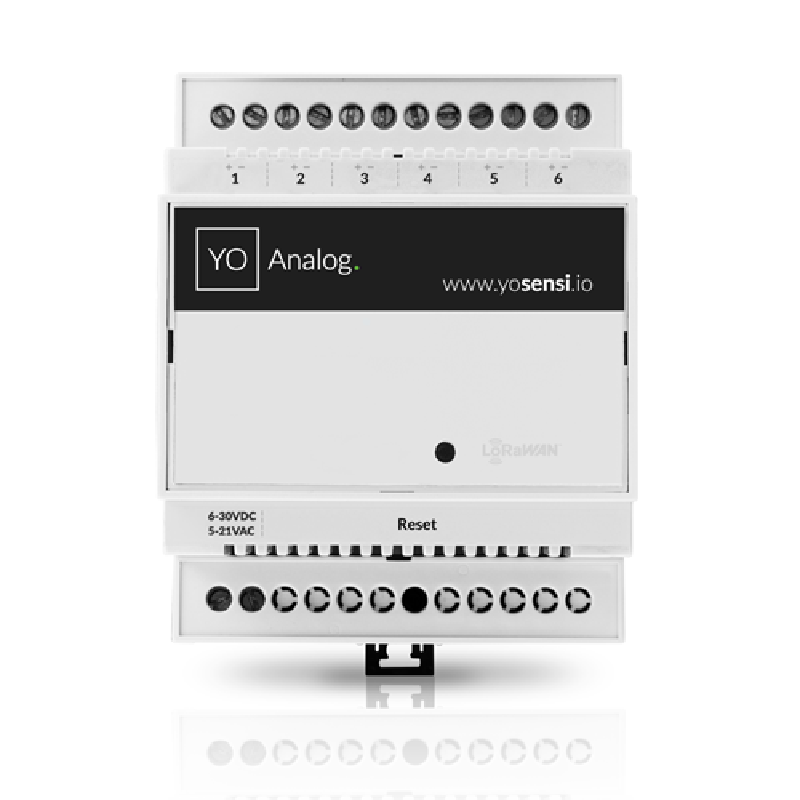

YO Analog
By Yosensi Sp. z o.o.

YO Analog

YO Analog makes it possible to monitor devices and processes in automation. The device has six configurable measurement inputs, each of which can operate in one of two analogue modes such as voltage input (0–10 V) or current input (4–20 mA).

LoRa Alliance Certified Class A MAC v1.0.2 IP IP20 4 frequency plans
Add to The Things Stack Datasheet Talk to an expert

About this device

YO Analog makes it possible to monitor devices and processes in automation. The device has six configurable measurement inputs, each of which can operate in one of two analogue modes such as voltage input (0–10 V) or current input (4–20 mA).

The YO Analog supports 4 regional frequency plans and operates as a Class A LoRaWAN device.

Key features

  • Sensors: analog input, 4-20 ma.
  • LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
  • 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.

Vendor

Yosensi Sp. z o.o.
17 devices in the repository

At a glance

Model IDyo-analog
LoRaWAN classA
MAC version1.0.2
IP ratingIP20
Dimensions 58 × 71.2 × 90 mm
Weight127 g

Downloads & links

DatasheetVendor documentation
Source YAMLvendor/yosensi/ on GitHub
