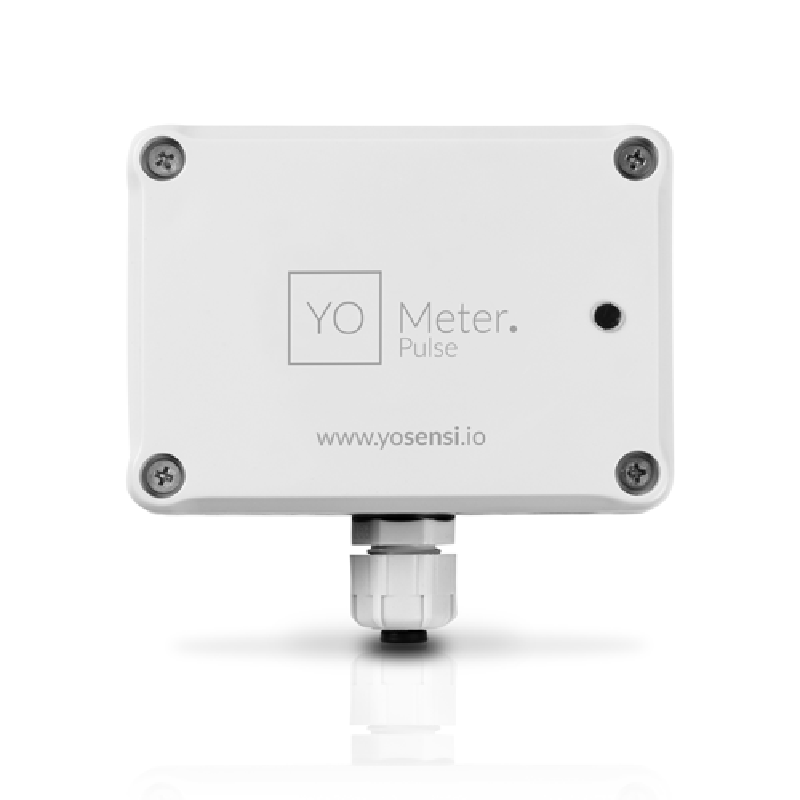

YO Meter Pulse
By Yosensi Sp. z o.o.

YO Meter Pulse

The YO Meter Pulse input accepts connection to potential-free contacts. The device will not count pulses if the input is connected to contacts with any potential. Device input can detect pulses with different contact debounce times. This parameter is configurable and by default is 47 ms – up to max. 10 pulses per 1 s (boundary range 1-50 pulses per 1 s depends on the contact debouncing setting).

LoRa Alliance Certified Class A MAC v1.0.2 IP IP67 3 x AA (3 x 1.5V) · replaceable 4 frequency plans
Add to The Things Stack Datasheet Talk to an expert

About this device

The YO Meter Pulse input accepts connection to potential-free contacts. The device will not count pulses if the input is connected to contacts with any potential. Device input can detect pulses with different contact debounce times. This parameter is configurable and by default is 47 ms – up to max. 10 pulses per 1 s (boundary range 1-50 pulses per 1 s depends on the contact debouncing setting).

The YO Meter Pulse supports 4 regional frequency plans and operates as a Class A LoRaWAN device.

Key features

  • Sensors: pulse count, temperature, humidity.
  • LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
  • 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.
  • Battery powered (3 x AA (3 x 1.5V)), user replaceable.

Vendor

Yosensi Sp. z o.o.
17 devices in the repository

At a glance

Model IDyo-meter-pulse
LoRaWAN classA
MAC version1.0.2
IP ratingIP67
Battery3 x AA (3 x 1.5V) (replaceable)
Dimensions 64 × 88 × 42 mm
Weight126.5 g

Downloads & links

DatasheetVendor documentation
Source YAMLvendor/yosensi/ on GitHub
