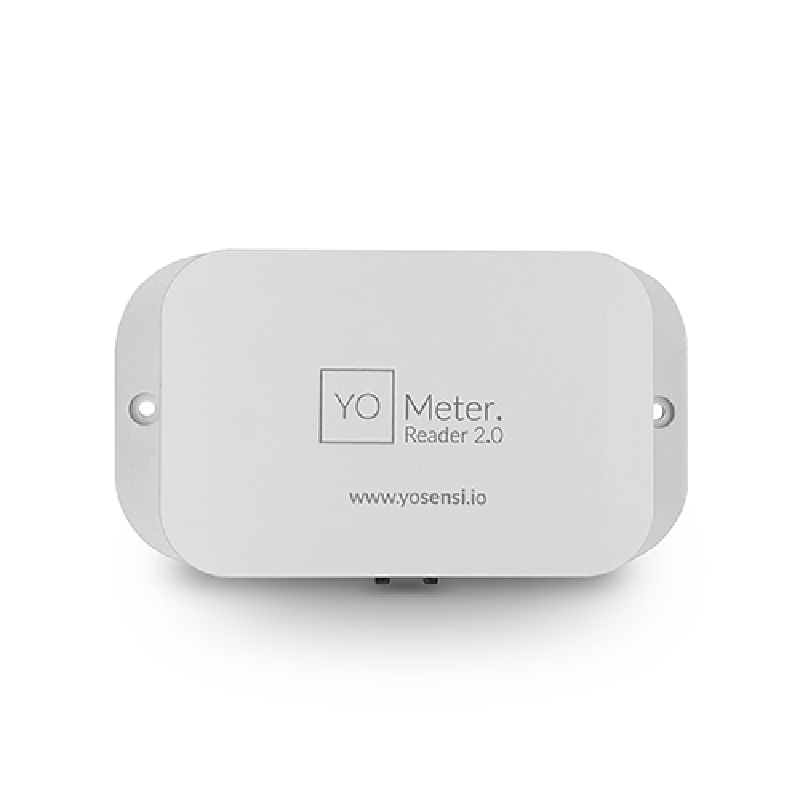

YO Meter Reader 2.0
By Yosensi Sp. z o.o.

YO Meter Reader 2.0

YO Meter Reader 2.0 is a battery-powered LoRaWAN device enabling data reading from LED pulse detector. Additionally, the device has built-in temperature and humidity sensors.It provides data transmission, eliminating the need for manual readings and potential errors. Its versatile applications include smart metering, energy consumption monitoring, and billing systems.

LoRa Alliance Certified Class A MAC v1.0.2 IP IP40 3 x AA (3 x 1.5V) · replaceable 4 frequency plans
Add to The Things Stack Datasheet Talk to an expert

About this device

YO Meter Reader 2.0 is a battery-powered LoRaWAN device enabling data reading from LED pulse detector. Additionally, the device has built-in temperature and humidity sensors.It provides data transmission, eliminating the need for manual readings and potential errors. Its versatile applications include smart metering, energy consumption monitoring, and billing systems.

The YO Meter Reader 2.0 supports 4 regional frequency plans and operates as a Class A LoRaWAN device.

Key features

  • Sensors: temperature, humidity, pulse count, energy, water.
  • LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
  • 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.
  • Battery powered (3 x AA (3 x 1.5V)), user replaceable.

Vendor

Yosensi Sp. z o.o.
17 devices in the repository

At a glance

Model IDyo-meter-reader-2-0
LoRaWAN classA
MAC version1.0.2
IP ratingIP40
Battery3 x AA (3 x 1.5V) (replaceable)
Dimensions 124.3 × 67.3 × 35 mm
Weight106 g

Downloads & links

DatasheetVendor documentation
Source YAMLvendor/yosensi/ on GitHub
