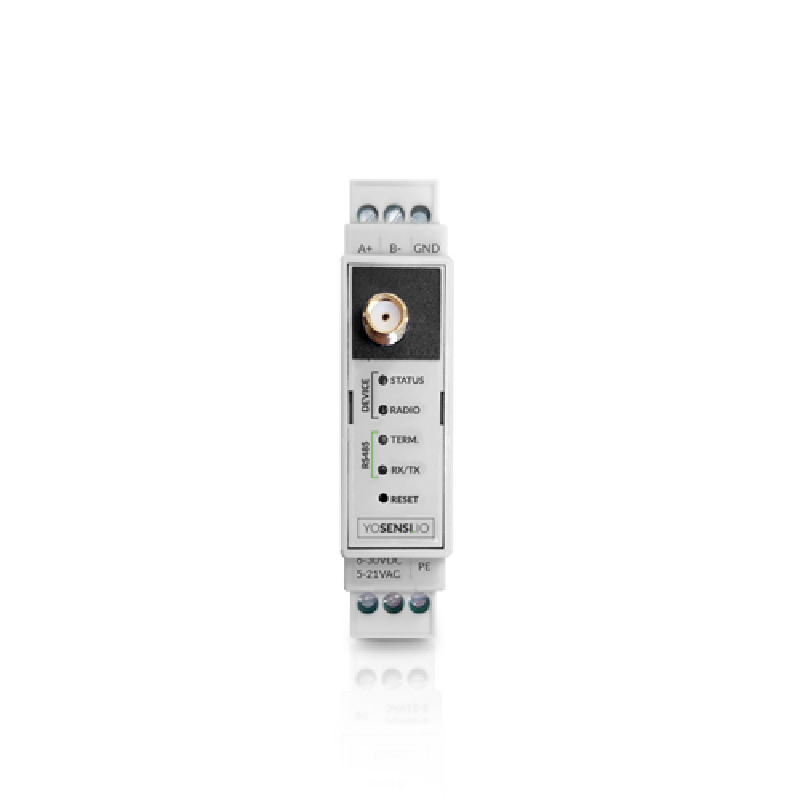

YO Modbus
By Yosensi Sp. z o.o.

YO Modbus

YO Modbus is the bridge between the Modbus network and LoRaWAN. It allows to read data via Modbus RTU from Slave devices and send it via LoRaWAN. One YO Modbus device provides capacity to create up to 150 Modbus queries and to send them in up to 30 different LoRa packets. These are sent in LoRA packets of up to 5 queries each (i.e. maximum of 30 packets).

LoRa Alliance Certified Class A MAC v1.0.2 IP IP20 4 frequency plans
Add to The Things Stack Datasheet Talk to an expert

About this device

YO Modbus is the bridge between the Modbus network and LoRaWAN. It allows to read data via Modbus RTU from Slave devices and send it via LoRaWAN. One YO Modbus device provides capacity to create up to 150 Modbus queries and to send them in up to 30 different LoRa packets. These are sent in LoRA packets of up to 5 queries each (i.e. maximum of 30 packets).

The YO Modbus supports 4 regional frequency plans and operates as a Class A LoRaWAN device.

Key features

  • Sensors: current, power, voltage.
  • LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
  • 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.

Vendor

Yosensi Sp. z o.o.
17 devices in the repository

At a glance

Model IDyo-modbus
LoRaWAN classA
MAC version1.0.2
IP ratingIP20
Dimensions 58 × 17.5 × 90 mm
Weight90 g

Downloads & links

DatasheetVendor documentation
Source YAMLvendor/yosensi/ on GitHub
