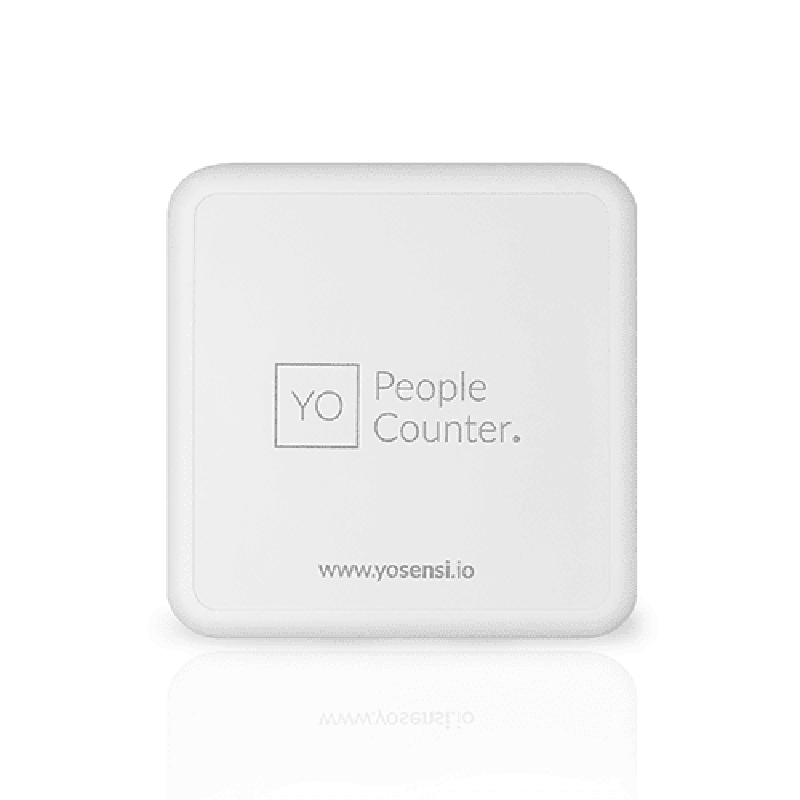

YO People Counter
YO People Counter is a bi-directional device that uses a novel 24 GHz radar transceiver to detect motion from both directions simultaneously. This device detects a person moving independently when a certain distance exists between people and measures the speed of moving objects approaching the sensor. This device counts people flow in buildings, exhibitions, airports and more.
About this device
YO People Counter is a bi-directional device that uses a novel 24 GHz radar transceiver to detect motion from both directions simultaneously. This device detects a person moving independently when a certain distance exists between people and measures the speed of moving objects approaching the sensor. This device counts people flow in buildings, exhibitions, airports and more.
The YO People Counter supports 4 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: radar.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.
Vendor
At a glance
More from Yosensi Sp. z o.o.
YO 360
YO Agribox
YO Airflow
Hardware specifications
| Model ID | yo-people-counter |
| Dimensions | 86 × 86 × 25.5 mm |
| Weight | 91 g |
| IP rating | IP40 |
| Additional radios | ble |
Sensors & capabilities
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 3.2.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 30 dBm | ✓ Yes |
Firmware 3.6.2
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 30 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “YO People Counter”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
