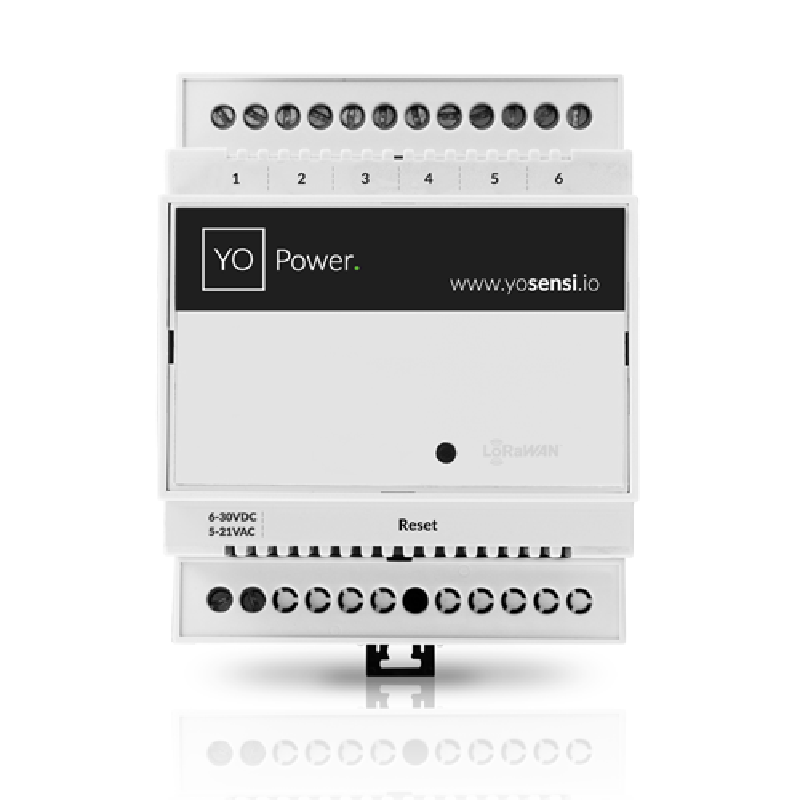

YO Power
YO Power measures AC current flowing through devices connected to the mains. It can be fitted with up to six current clamps. It is possible to connect current-rated clamps with current output from almost every manufacturer. One YO Power device can measure multiple currents simultaneously (e.g. in one three-phase device, two three-phase devices, six single-phase devices, three single-phase devices, etc.).
About this device
YO Power measures AC current flowing through devices connected to the mains. It can be fitted with up to six current clamps. It is possible to connect current-rated clamps with current output from almost every manufacturer. One YO Power device can measure multiple currents simultaneously (e.g. in one three-phase device, two three-phase devices, six single-phase devices, three single-phase devices, etc.).
The YO Power supports 4 regional frequency plans and operates as a Class A LoRaWAN device.
Key features
- Sensors: current, power.
- LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
- 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.
Vendor
At a glance
More from Yosensi Sp. z o.o.
YO 360
YO Agribox
YO Airflow
Hardware specifications
| Model ID | yo-power |
| Dimensions | 58 × 71.2 × 90 mm |
| Weight | 146 g |
| IP rating | IP20 |
| Additional radios | ble |
Certifications & compliance
Standards
Network profiles
Capabilities are defined per firmware version and frequency plan, exactly as published in the repository.
Firmware 3.2.0
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 30 dBm | ✓ Yes |
Firmware 4.0.3
| Frequency plan | MAC | Reg. params | Class | Join | Max EIRP | Certified |
| AS923 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| AU915-928 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 30 dBm | ✓ Yes |
| EU863-870 | 1.0.2 | RP001-1.0.2-RevB | A | OTAA | 16 dBm | ✓ Yes |
| US902-928 | 1.0.2 | RP001-1.0.2 | A | OTAA | 30 dBm | ✓ Yes |
Frequency plan coverage
Add to The Things Stack
Manual setup
Create an application
In The Things Stack console, go to Applications → Create application and pick a unique application ID.
Register an end device
Choose From the LoRaWAN Device Repository and search for “YO Power”. Select your firmware version and frequency plan.
Enter device credentials
Provide the DevEUI, JoinEUI and AppKey printed on the device label or QR code.
Power on & verify uplinks
Within a few minutes you'll see the join request and uplinks in the Live data tab.
