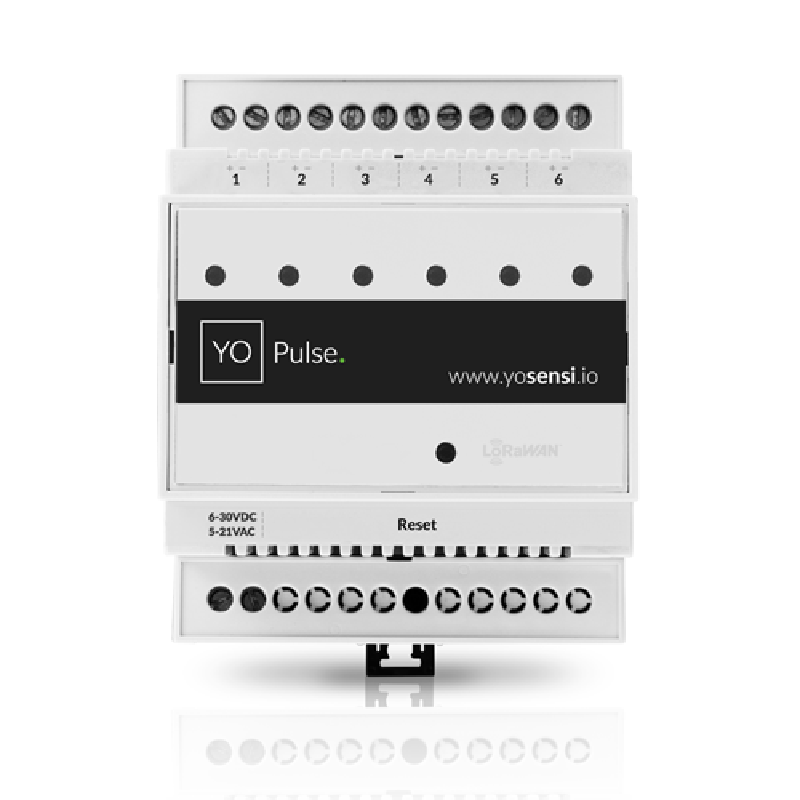

YO Pulse
By Yosensi Sp. z o.o.

YO Pulse

YO Pulse enables monitoring of logical states of devices and processes in automation and collection of pulses from measuring devices (e.g. water meters). The device provides six configurable measurement inputs, each of which can operate in one of three modes, normally open contact monitoring, normally closed contact monitoring, and pulse counting. The device enclosure has been designed to mount on electrical switchboards or automation cabinets on standard 35 mm DIN rails.

LoRa Alliance Certified Class A MAC v1.0.2 IP IP20 4 frequency plans
Add to The Things Stack Datasheet Talk to an expert

About this device

YO Pulse enables monitoring of logical states of devices and processes in automation and collection of pulses from measuring devices (e.g. water meters). The device provides six configurable measurement inputs, each of which can operate in one of three modes, normally open contact monitoring, normally closed contact monitoring, and pulse counting. The device enclosure has been designed to mount on electrical switchboards or automation cabinets on standard 35 mm DIN rails.

The YO Pulse supports 4 regional frequency plans and operates as a Class A LoRaWAN device.

Key features

  • Sensors: pulse count, digital input.
  • LoRa Alliance certified, verified interoperability with The Things Stack and other LoRaWAN network servers.
  • 4 frequency plans supported: AS923, AU915-928, EU863-870, US902-928.

Vendor

Yosensi Sp. z o.o.
17 devices in the repository

At a glance

Model IDyo-pulse
LoRaWAN classA
MAC version1.0.2
IP ratingIP20
Dimensions 58 × 71.2 × 90 mm
Weight151 g

Downloads & links

DatasheetVendor documentation
Source YAMLvendor/yosensi/ on GitHub
