Burning Bootloader into the Device

Outdated: this section documents The Things Network V2, which is no longer maintained. See the documentation for The Things Stack V3, or browse the V2 docs index.

Please use the the latest firmware for the RAK7204 LoRa Environmental Sensor accessible in this directory in order to avoid potential problems. Burning the Bootloader into the device is done as follows:

Note: Skip this section if you have a RAK7204 with V3.0.0.0 firmware or newer, for it has already a bootloader.

1 . To start with, download and install the “STM32CubeProgrammer” tool in your PC through this link or through this RAK directory.

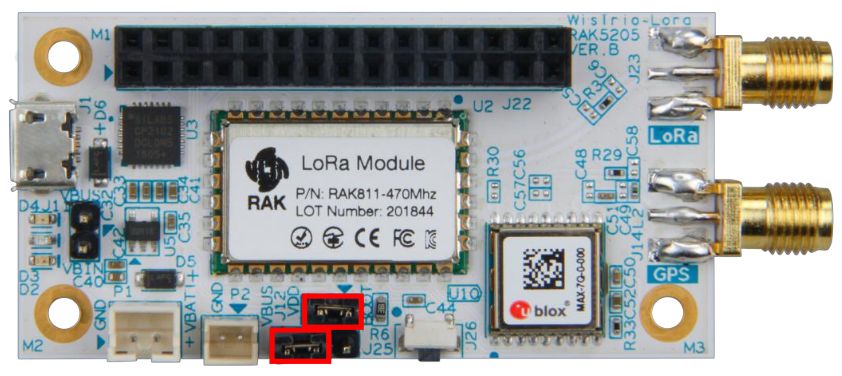

2 . Then, configure your RAK7204 by jumping the “BOOT” pin and “VCC” pin for boot mode as the following pictures shown below:

Figure 1: Boot Line shorted using the Jumper Pins

3 . Connect your RAK7204 to your PC using the USB cable as follow:

Figure 2: RAK7204 connected to your PC via USB cable

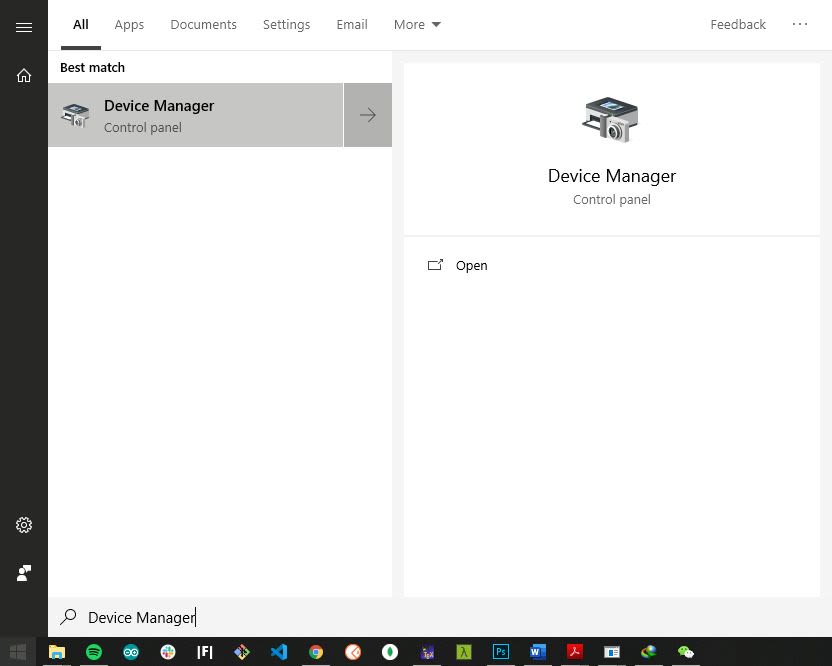

4 . Choose the correct port number in the COM Port field. You can check this in the Device Manager.

Figure 3: Checking COM Port through Device Manager

5 . Open the “STM32CubeProgrammer” tool.

6 . Select UART type; go to COM Port and look for your RAK7204 LoRa Environmental Sensor COM Port (ex. COM5).

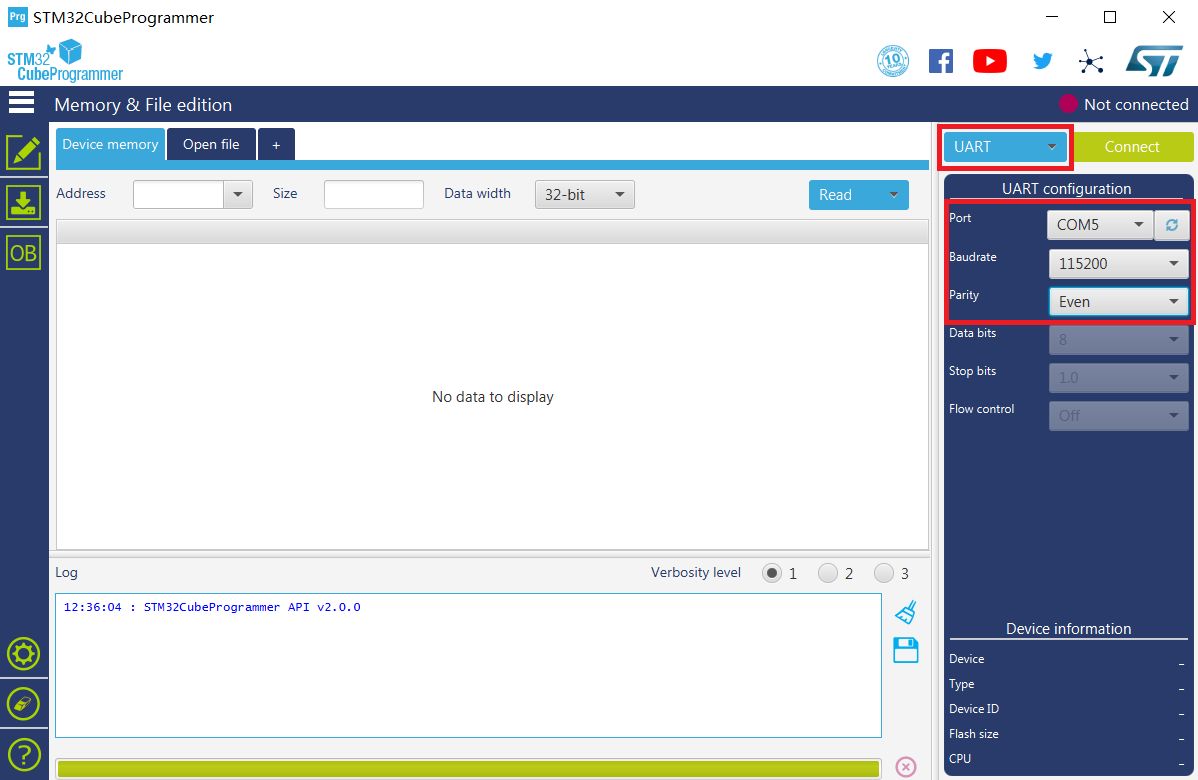

7 . Configure the Baud rate and Parity.

Figure 4: UART Settings in STM32CubeProgrammer

8 . Then, press the “Connect” button at the top right corner.

Warning: If there are some errors in the Log box or it can’t connect, please close the STM32CubeProgrammer and reset RAK7204, then open the STM32CubeProgrammer and connect again.

Figure 5: Errors Occurred During Connecting

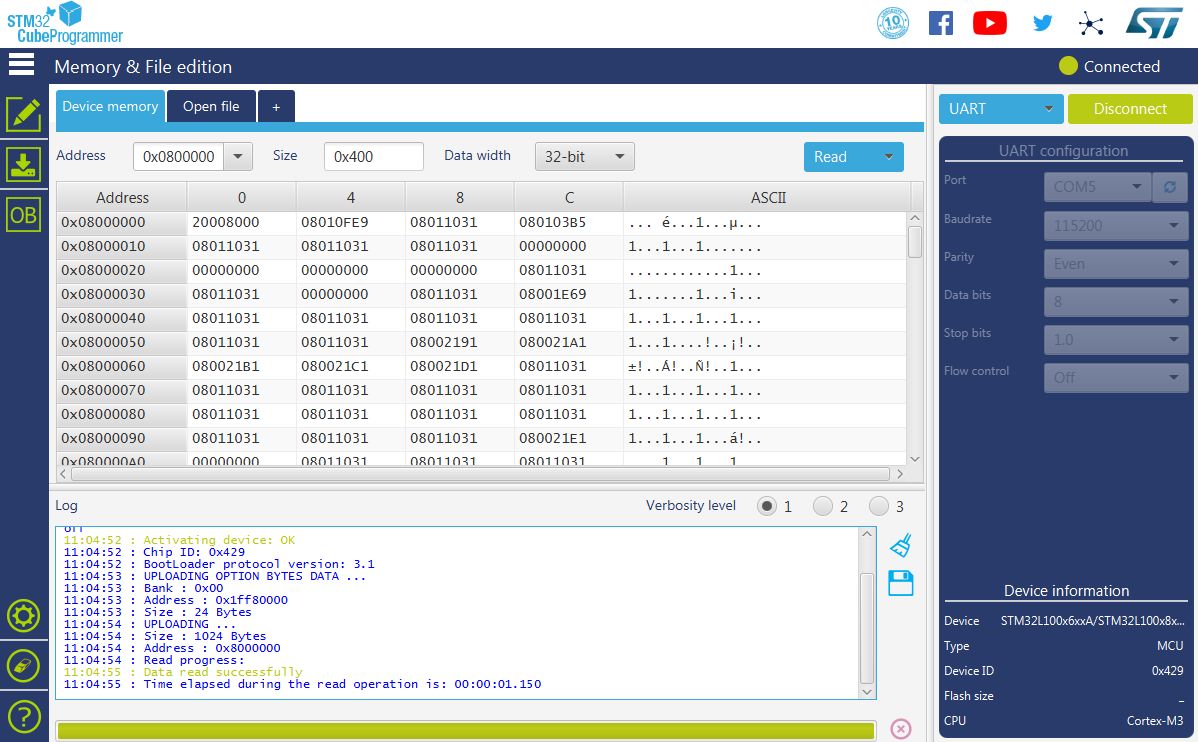

  • The correct Log you should see is the information like the following picture shows:

Figure 6: Successful Connection Log to your Device

Now, let’s start burning the bootloader into the RAK7204 LoRa Environmental Sensor.

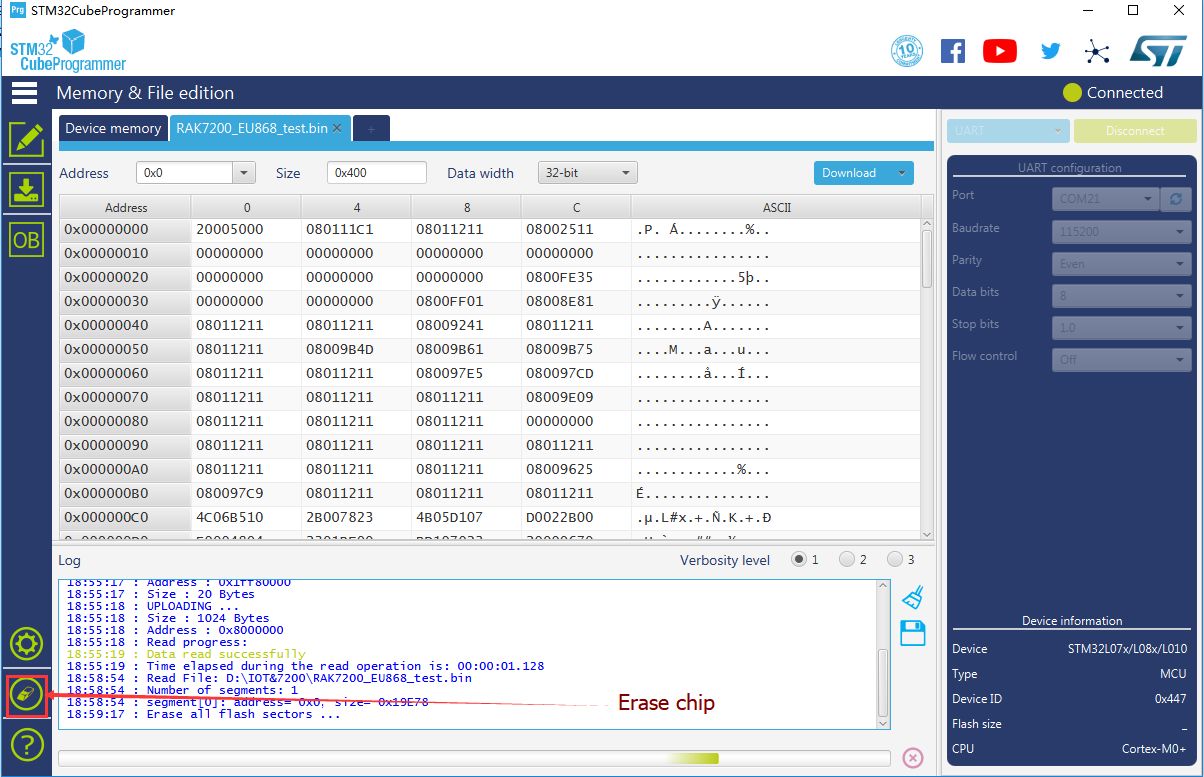

9 . First, erase all data on the RAK7204 LoRa Environmental Sensor referred from the following picture below:

Figure 7: Erasing the Data in the Chip

10 . Download the bootloader file accessible to this link. Then, press “Open file” and select the bootloader file:

Figure 8: Opening the Bootloader file

11 . Click the “Download” button to start the burning process

Figure 9: Downloading of Bootloader to the device

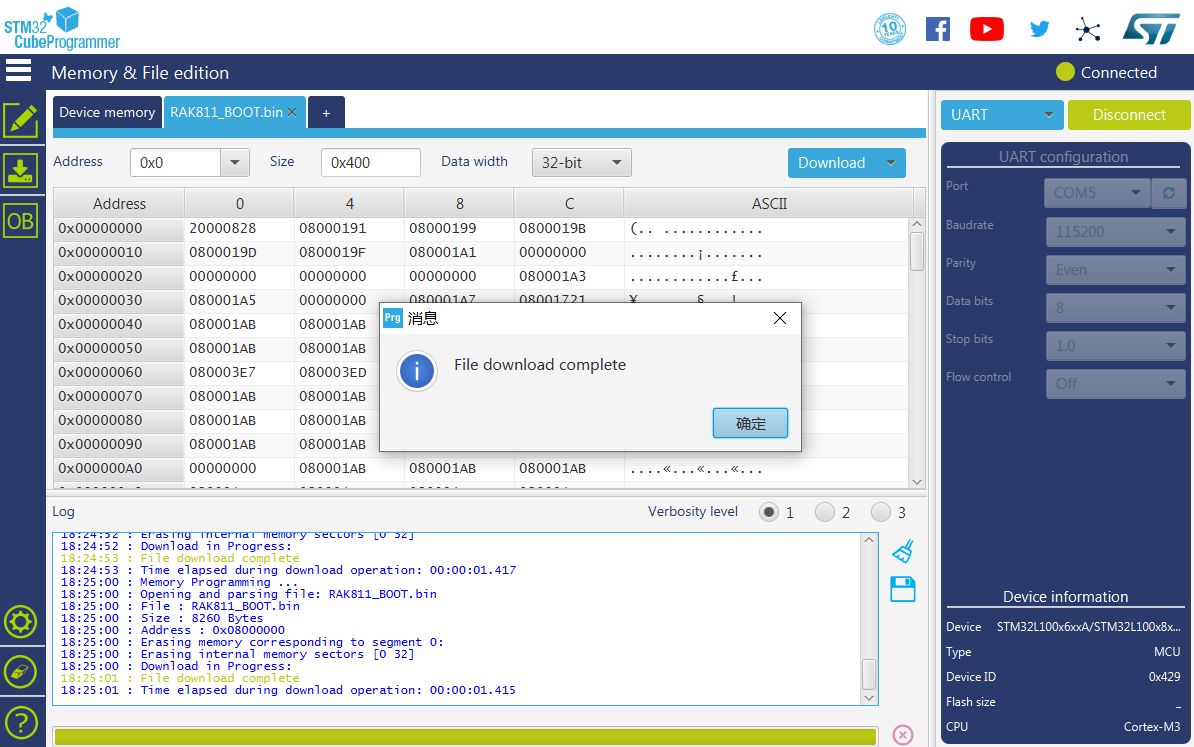

12 . OK, you have successfully burned the firmware into RAK7204 LoRa Environmental Sensor!

Figure 10: Successfully Burned the Bootloader to the device

13 . “Disconnect” and close the “STM32CubeProgrammer” tool. Then, power down and remove the connection between BOOT pin and VCC pin to let RAK7204 LoRa Environmental Sensor work in normal mode.

14 . Then, connect RAK7204 with your PC’s USB interface again.

Alright! You can now start burning the firmware into RAK7204 WisTrio LoRa Tracker.
