COMBOX.L 2T-B TEMPERATURE SENSOR EU868

LoRa TEMPERATURE SENSOR EU868

Made by
Solvera Lynx is a certified partner.
Contact this partner →

Description

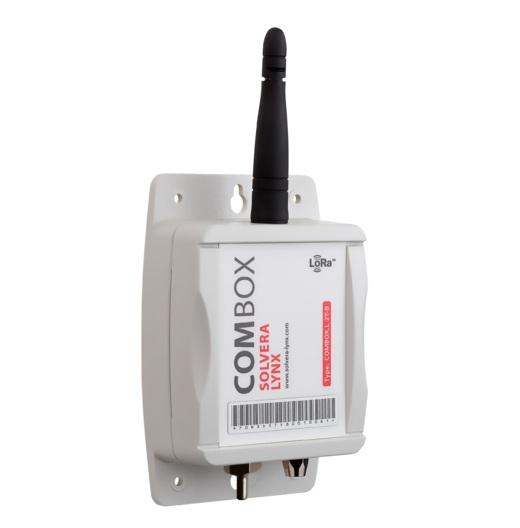

TEMPERATURE SENSOR (ComBox.L 2T) can connect up to two temperature probes (PT1000). Temperature acquisition is performed every 10 minutes and is transmitted immediately to the cloud. ComBox.L range is LoRaWAN and ThingPark approved, due to their external antenna and their industrial design they have high sensitivity of connectivity and allows installation in any harsh environment.

# End Device
# Environment Monitoring
# EU 863-870
# Industrial IoT
# Outdoor
# Smart Building

Specifications

Key features highlights :

ComBox.L 2T-B
Connect two input for two PT1000 temperature sensors

Battery powered device with long autonomy

Collect data from PT1000 temperature sensors

Fit to industrial environment IP 67 protection

Data accuracy for smart metering and energy management

Long range capacity due to external antenna

Tampering detection in case of cable disruption

Data logging, time synchronization, remote configuration

Certified LoRaWAN® 1.0.1

Exist with probe mounted on casing see product list

Technical details

Product Attributes Temperature
Radio Frequency Band EU868 - Europe 863-870MHz
LoRa Class Class B
Solution Represented Smart Agriculture, Smart Cities, Energy and Utilities, Smart Industries, Facilities Management, Other, Smart Operations, Smart Building, Smart Metering
Battery specification (Wh) 2x2600mAh AA
RF power (dBm) 14 dBm
Antenna External on connector
RF transceiver SX1276
Interfaces Analog
Depth (cm) 9.1
Width (cm) 4,26
Height (cm) 20.14
Certification LoRa® Alliance, CE, Orange LoRa®
