LoRa PULSE SENSOR US915

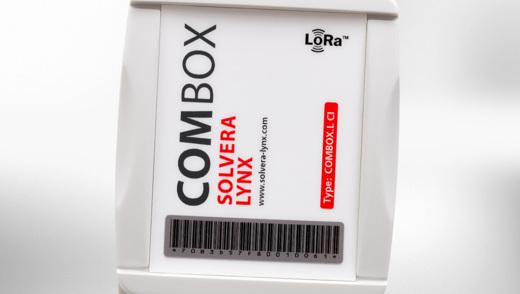

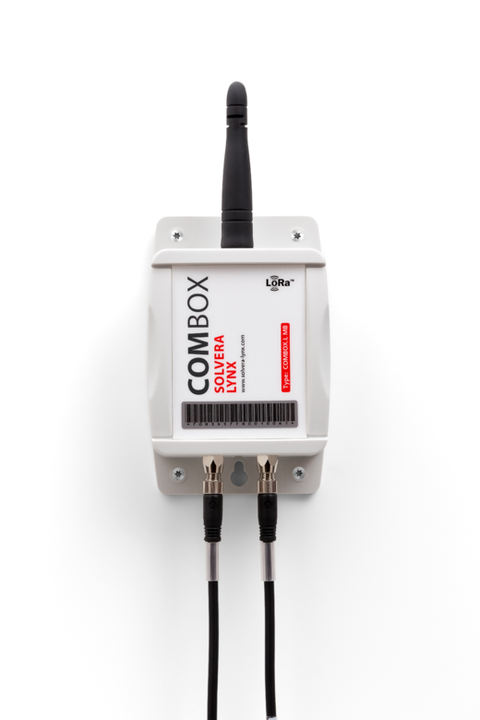

PULSE SENSOR (ComBox.L CI) can be used with any meter with a pulse signal output (such as electricity, gas, water, heat). It provides comprehensive data to meet the needs of meter management and consumption monitoring. Pulses can be aggregated from 1 minute intervals. It can connect up to 2 meters, both connections have tampering detection. ComBox.L range is LoRaWAN and ThingPark approved, due to their external antenna and their industrial design they have high sensitivity of connectivity and allows installation in any harsh environment.
Key features highlights :
ComBox.L CI-B
Connect two input for two pulse meters
Battery powered device with long autonomy
Collect data from different meters such as Electricity or Gas or Water equipped with a pulse output
Fit to industrial environment IP 67 protection
Data accuracy for smart metering and energy management
Long range capacity due to external antenna
Exist in Atex version see other products
Tampering detection in case of cable disruption
Data logging, time synchronization, remote configuration
Certified LoRaWAN® 1.0.1
Product Attributes: Bridges
Radio Frequency Band: US915 - US 902-928MHz
LoRa Class: Class B
Solution Represented:Smart Agriculture, Smart Cities, Energy and Utilities, Smart Industries, Facilities Management, Other, Smart Operations, Smart Building, Smart Metering
Antenna: External on connector
RF transceiver:SX1276
Interfaces:Analog
Depth (cm) 9
Width (cm) 4,3
*Height (cm) 20
