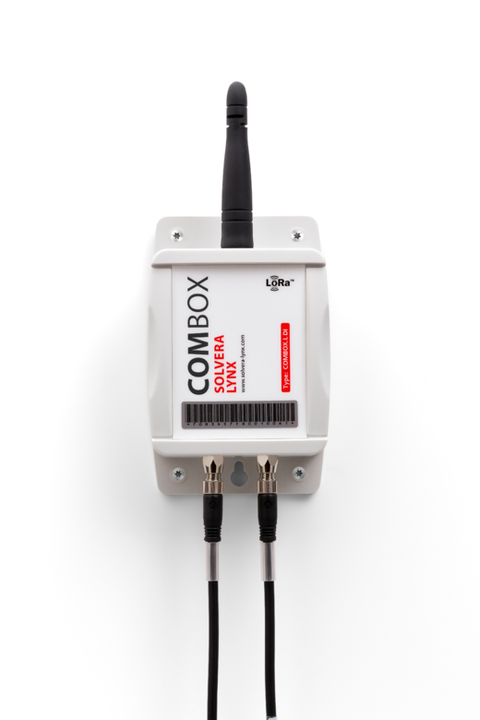

COMBOX.L DI-B STATE SENSOR EU868

LoRa STATE SENSOR EU868

Made by
Solvera Lynx is a certified partner.

Description

STATE SENSOR (ComBox.L DI) gives on/off status. It can be used with any system that has an on/off output signal (such as a pump, compressor, door switch, relay output, push button). It can connect up to 4 channels. The data are transmitted to the cloud immediately after detection of rising or falling edge. ComBox.L range is LoRaWAN and ThingPark approved, due to their external antenna and their industrial design they have high sensitivity of connectivity and allows installation in any harsh environment.

# Agriculture
# End Device
# EU 863-870
# Industrial IoT
# Logistics
# LoRaWAN Certified
# Outdoor
# Smart Building
# Smart City

Specifications

Key features highlights :

ComBox.L DI-B
Connect four input for status counting

Battery powered device with long autonomy

Collect circle or status ON/OFF data from pump, compressor, relay, door, push button...

Fit to industrial environment IP 67 protection

Data accuracy for smart metering and energy management

Long range capacity due to external antenna

Tampering detection in case of cable disruption

Data logging, time synchronization, remote configuration

Certified LoRaWAN® 1.0.1

Technical details

Product Attributes Modules, Metering, Bridges
Radio Frequency Band EU868 - Europe 863-870MHz
LoRa Class Class B
Solution Represented Smart Agriculture, Smart Cities, Energy and Utilities, Smart Industries, Facilities Management, Other, Smart Operations, Smart Building, Smart Metering
Battery specification (Wh) 2x2600mAh AA
RF power (dBm) 14 dBm
Antenna External on connector
RF transceiver SX1276
Interfaces Analog
Depth (cm) 9.1
Width (cm) 4,26
*Height (cm) 20.14
Certification LoRa® Alliance, CE, Orange LoRa®
