COMBOX.L DI-B STATE SENSOR US915

LoRa STATE SENSOR

Made by
Solvera Lynx is a certified partner.
Contact this partner →

Description

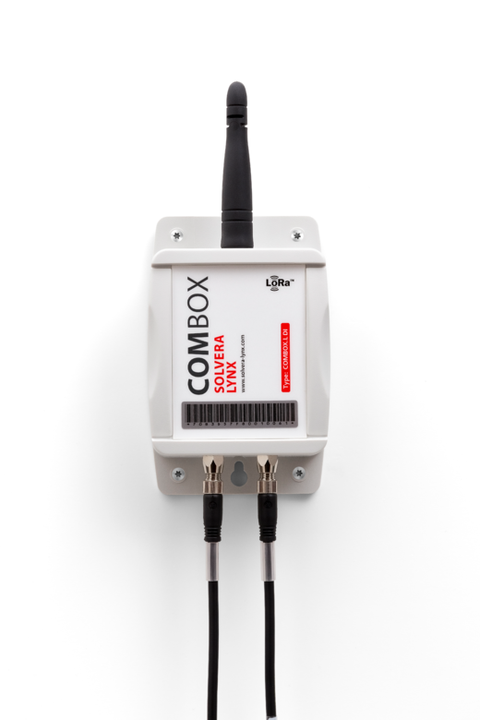

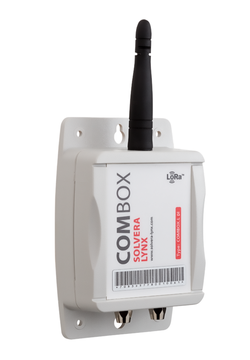

STATE SENSOR (ComBox.L DI) gives on/off status. It can be used with any system that has an on/off output signal (such as a pump, compressor, door switch, relay output, push button). It can connect up to 4 channels. The data are transmitted to the cloud immediately after detection of rising or falling edge. ComBox.L range is LoRaWAN and ThingPark approved, due to their external antenna and their industrial design they have high sensitivity of connectivity and allows installation in any harsh environment.

# End Device
# EU 863-870
# Industrial IoT
# Outdoor
# Smart Building
# Smart City

Specifications

Key features highlights :

ComBox.L DI-B
Connect four input for status counting
Battery powered device with long autonomy
Collect circle or status ON/OFF data from pump, compressor, relay, door, push button...
Fit to industrial environment IP 67 protection
Data accuracy for smart metering and energy management
Long range capacity due to external antenna
Tampering detection in case of cable disruption
Data logging, time synchronization, remote configuration

Technical details

  1. RADIO• Frequency: 868 MHz• TX Power: 14 dBm (25 mW)• RX Sensitivity: -139 dBm• Modulation: LoRa• MAC Layer: LoRaWAN
  2. INPUT CI-B/DI-B• IImpedance: 22 kΩ• Capacitance: 110 pF• Voltage: 3.6 V
  3. INPUT 2T-B• Impedance: ≥ 4 kΩ• Capacitance: 325 pF• Voltage: 3.6 V
  4. POWER• Battery: 2x AA (LI-SOCI2 LS14500 3,6V)• Battery Capacity: 2 x 2600 mAh
  5. TEMPERATURE• Operation: -20 °C to +60 °C• Storage: -20 °C to +70 °C
  6. HOUSING• Dimensions: 200 x 90 x 43 mm• Weight: 280 g• IP Protection: IP67 (IEC 60529)
