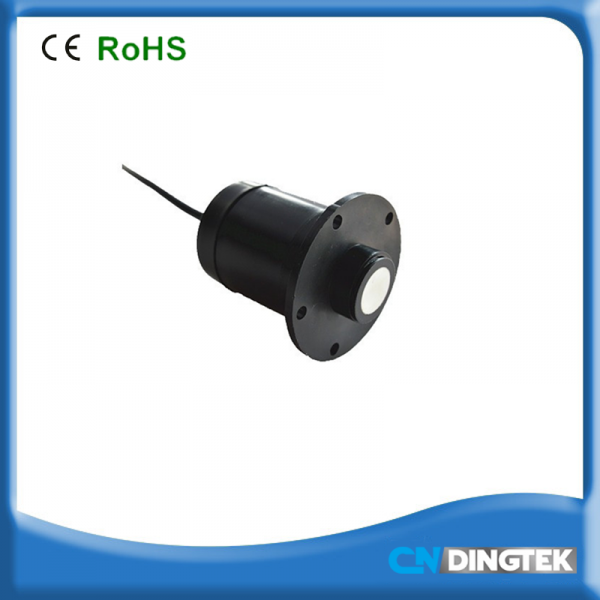

DF550-LR-2000

2meters Ultrasonic Distance Sensor with LoRaWAN module

Made by
Dingtek is a certified partner.
Contact this partner →

Description

The F550 is ultrasonic level (distance) sensors which measure the air height directly and calculate the liquid or solid height based on the total height of the container (distance). The resolution is 1mm or 0.1%FS (the bigger value). It is applicable for the close container or open container. Furthermore it can calculate the volume of the container or the liquid.

With LoRaWAN wireless module, the level data is sent to the network server via gateway. Finally user can monitor the realtime level remotely. It is optional for frequency 470Mhz(CN), 868Mhz (Europe), 915Mhz(USA), 923Mhz(Australia).

# End Device
# EU 863-870
# Logistics
# Smart Building
# US 902-928

Specifications



Application

F550-2-2000 ultrasonic level sensor with RS232 output , 200-2000mm measurement range, high resolution, can add Zigbee/Wifi/GPRS device inside (optional). Widely used in fuel station,water tank,agriculture,river, can measure any liquid or solid.

file


The F550 is one type of ultrasonic level sensor which measure the air height in the container directly and calculate the level height based on the total height of the container. The resolution is 1mm or 0.1%FS (the bigger value). It is applicable for the close container or open container. Furthermore it can calculate the volume of the container or the liquid. It is easy to integrate into the embedded system or SCADA

Measurement Range
200~ 2000mm
Resolution
1mm or 0.1%FS, the bigger one
Power Supply
10-32V DC
Output Signal
RS232
Protocol
Modbus RTU/ Dingtek/Customized
Working Temperature
-40 ~ 85℃
Shell Material
Stainless Steel
Media
Any liquid
Protection Rank
IP67
Mounting
flange
LED Display
Optional
Battery
Optional
Dimension
M30*80mm

Technical details

RS232 version
Pin 1: Red Line: V+,

Pin 2: Blue Line: RS232 Tx

Pin 3: Black Line: GND

Pin 4: Yellow Line: RS232 Rx

0-2.5V version
Pin 1: Brown Line: V+,

Pin 2: Blue Line: 0-2.5V Output

Pin 3: Black Line: GND (For example, 2.5 meter version, 2.5meter air height ---2.5volt, 1meter air height ---1v)

0-5V version
Pin 1: Red Line: V+,

Pin 2: Blue Line: 0-5V Output

Pin 3: Black Line: GND (For example, 2 meter version, 2meter air height ---5volt, 1meter air height ---2.5v)

Wireless version (Zigbee/Wifi/GPRS)
Pin 1: Red Line: V+,

Pin 2: Black Line: GND

Notes: Protocol is same as RS485 version.
