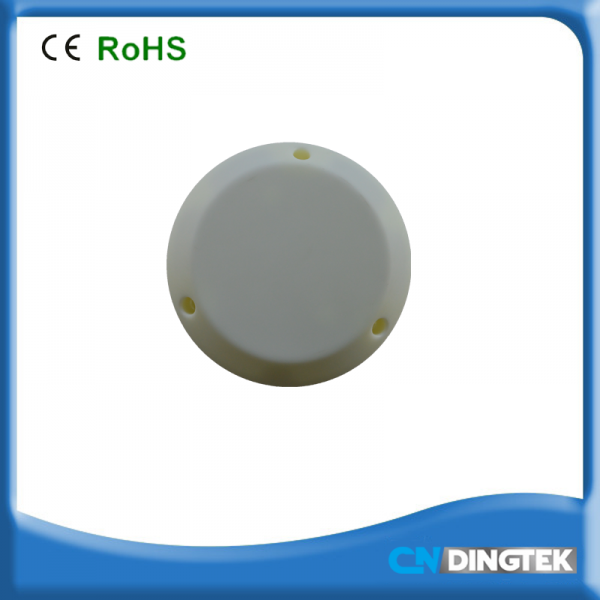

DF702

LoRaWAN Waste Bin Detector

Made by
Dingtek is a certified partner.

Description

The DF702 sensor is designed for fill detection, especially for trash/garbage bin full/empty detection.

The standard version is with LoRa wireless module, which transmit the position occupation status to the gateway or internet. It is optional for frequency 433Mhz, 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia). Furthermore it is optional with NB-IoT wireless.

As it is with algorithm of low power consumption, the internal battery works for more than 3 years. The IP68 level ensure the endurable working outdoor.

# End Device
# EU 863-870
# Logistics
# Outdoor
# Smart Building
# US 902-928

Specifications

Detection Range
200cm (vertical)
Principle
Ultrasonic
Power Supply
Internal Battery, 2000mAh @ 7.4V Lithium
Operating Temperature
-20 ~ +70℃
Storage Temperature
-40 ~ +85℃
Shell Material
ABS
Protection Level
IP68
Current
<30mA@7.4V(uploading), <20ua @7.4V (sleep)
Battery Life
2 years at 1 times full report per day
Dimension
100*100*60mm
Net Weight
100g
Wireless
LoRa 433/868/915Mhz, 3km in view sight
